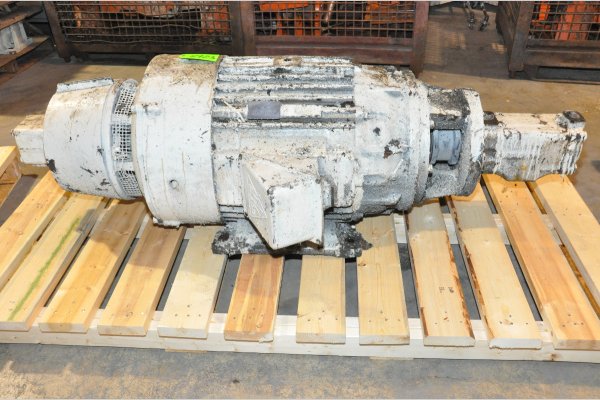

Used Delco Model: 445 UCFCZ 75 HP Electric Motor
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Delco |
| Model | 445 UCFCZ |
| Size | 75 HP |
| Inventory Number | DCM-4923 |
Delco - 445 UCFCZ 75 HP Electric Motor, 480 Volt Controls
View Available Plant Support Items
Questions? Call (847) 360-9170 and mention DCM-4923.
Features & Accessories
- Delco 75 HP, Frame: 445 UCFCZ, 1180 RPM, Double-End, C-Face TEFC Industrial Rated Electric Motor with Vickers F3-25V-21A single vane pump and Vickers F3-4535V-60A double vane pump direct mounted to the motor C-faces
- Complete motor and pump assemble removed from Prince 836 CCA 850 ton die casting machine - Die cast machine was parted out and motor and pumpers were in good working order (but used) when removed from machine
- Watch the live video in the link to your right to see and hear the Delco motor and Vickers pumps running ---->>>>
- NOTE: This is the 1180 RPM motor/pump arrangement required for water-glycol fluid operation used in die casting factories!
Item Specifications for DCM-4923
| US | Metric | |
| Manufacturer: | Delco | Delco |
| download | 445 UCFCZ | 445 UCFCZ |
| RPM: | 1180 RPM (1160 RPM, 1175 RPM, 1185 RPM, 1190 RPM) | 1180 RPM (1160 RPM, 1175 RPM, 1185 RPM, 1190 RPM) |
| Voltage: | 460 Volts, 3 Phase, 60 Cycle | 460 Volts, 3 Phase, 60 Cycle |
| Power Requirements: | 88 amps @ 460 volt | 88 amps @ 460 volt |
| Frame Design: | Double End C-Face Flanges for direct pump mounting | Double End C-Face Flanges for direct pump mounting |
| Enclosure: | TEFC (Totally Enclosed, Fan Cooled) | TEFC (Totally Enclosed, Fan Cooled) |
| Serial Number: | 39574 | 39574 |
| Installed Pump #1: | Vickers F3-25V-21A Single Vane Pump | Vickers F3-25V-21A Single Vane Pump |
| Installed Pump #2: | Vickers F3-453V-60A Double Vane Pump | Vickers F3-453V-60A Double Vane Pump |
Video
Description
Used, Delco Model 445 UCFCZ 75 HP Electric Motor For_Sale, Features Include: Complete motor and pump assemble removed from Prince 836 CCA 850 ton die casting machine - Die cast machine was parted out and motor and pumpers were in good working order (but used) when removed from machine, Watch the live video in the link to your right to see and hear the Delco motor and Vickers pumps running ---->>>>, NOTE: This is the 1180 RPM motor/pump arrangement required for water-glycol fluid operation used in die casting factories!, 480 Volt controls, second Hand, DCM-4923
