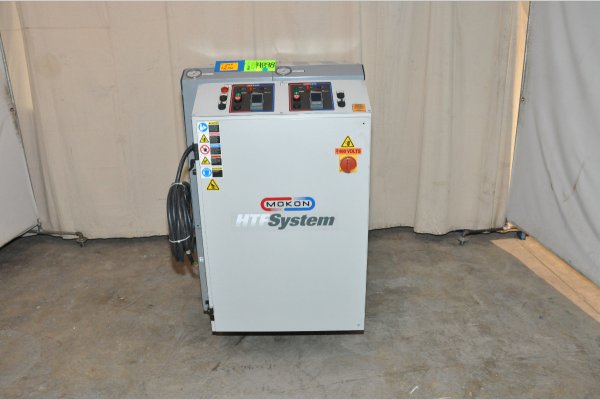

Used Mokon Model: H44206ACW 12 kW (6 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 21| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H44206ACW |
| Size | 12 kW (6 kW per zone) |
| Inventory Number | DCM-4898 |
Mokon - H44206ACW 12 kW (6 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3208 Controls
Questions? Call (847) 360-9170 and mention DCM-4898.
Features & Accessories
- HTF 500 Series Mokon Dependability
- Eurotherm 3208 Controller
- Water Cooling Circuit
- Unit on casters for easy movement
- Built-in pump pressure relief valve
Item Specifications for DCM-4898
| US | Metric | |
| Main Heater Power (Zone #1): | 6 KW | 6 KW |
| Pump Motor Size (Zone #1): | 1 HP | .75 KW |
| Flow Rate (Zone #1): | 10 gallons per minute | 38 liters per minute |
| Connection size/type (Zone #1): | 6 KW | 6 KW |
| Main Heater Power (Zone #1): | .75 inch NPT | 19.05 mm NPT |
| Pump Motor Size (Zone #1): | 1 HP | .75 KW |
| Flow Rate (Zone #1): | 10 gallons per minute | 38 liters per minute |
| Connection size/type (Zone #1): | .75 inch NPT | 19.05 mm NPT |
| Maximum Operating Temperature: | 500 degrees F | 260 degrees C |
| Full Load Amps @ 460/3/60: | 19 amp | 19 amp |
| Overall Size (L x W x H): | 41 x 15 x 50 inches | 1041 x 381 x 1270 mm |
| Shipping Dimensions and Weight: | 49 x 41 x 58 inches/ 860 pounds | 1244.6 x 1041.4 x 1473.2 mm |
Video
Documents
Description
Used, Mokon Model H44206ACW 12 kW (6 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 500 Series Mokon Dependability, Eurotherm 3208 Controller, Water Cooling Circuit, Unit on casters for easy movement, Built-in pump pressure relief valve, Eurotherm 3208 controls, second Hand, DCM-4898
