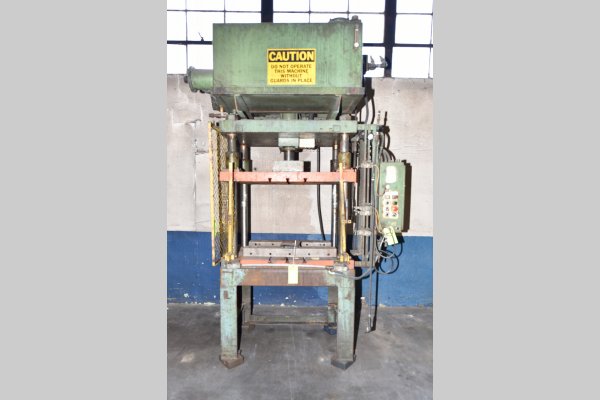

Used Metal Mechanics Model: DCT-35 35 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press

StatusSold
ManufacturerMetal Mechanics
ModelDCT-35
Size35 U.S. Ton
Inventory NumberDCM-4830

Metal Mechanics - DCT-35 35 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley Solid State Controls

View Available Trim Presses

Questions? Call (847) 360-9170 and mention DCM-4830.

Features & Accessories

  • Dual Pull-Out Bar Operation
  • T-Slotted Bed & Tapped Moving Platen
  • Allen Bradley SLC 500 Solid State Controls
  • Full Electrical and Hydraulic Documents including Schematics
  • One (1) Auxiliary Side Core Punch

Item Specifications for DCM-4830

USMetric
Model:DCT-35DCT-35
Pressing Tonnage:35 tons31.75 tons
Number of Columns:44
Column Diameter:3 inches76.2 mm
Daylight:32 inches812 mm
Stroke:16 inches406 mm
Shut Height:16 inches406 mm
Clearance between Tie Bars (Left to Right):36 inches914 mm
Clearance between Tie Bars (Front to Back):20 inches508 mm
Bed Size (Left to Right by Front to Back):46 x 31 inches1,168 x 787 mm
Approximate Footprint (L/R x F/B):66 x 56 inches1676.4 x 1422.4mm

Description

Used, Metal Mechanics Model DCT-35 35 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Dual Pull-Out Bar Operation, T-Slotted Bed & Tapped Moving Platen, Allen Bradley SLC 500 Solid State Controls, Full Electrical and Hydraulic Documents including Schematics, One (1) Auxiliary Side Core Punch, Allen Bradley Solid State controls, second Hand, DCM-4830
