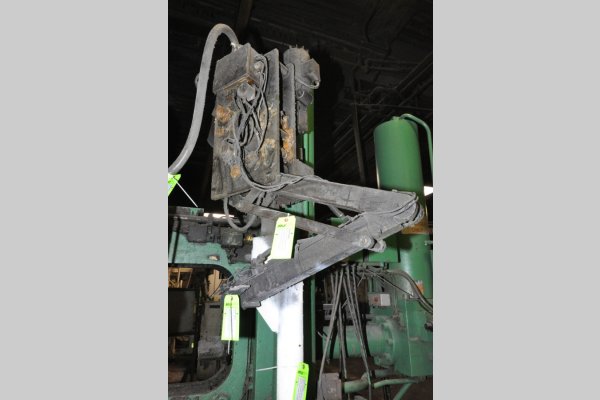

Used Rimrock Model: 305 70 Inches of Stroke with 50 Pound Maximum Pour Capacity Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations

Used Rimrock Model: 305 70 Inches of Stroke with 50 Pound Maximum Pour Capacity Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations1 / 6
StatusSold
ManufacturerRimrock
Model305
Size70 Inches of Stroke with 50 Pound Maximum Pour Capacity
Inventory NumberDCM-4822

Rimrock - 305 70 Inches of Stroke with 50 Pound Maximum Pour Capacity Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations, Rimrock Triangle Controls

View Available Auto-Ladles

See available Auto-LadlesPrint PDFPlay Video

Questions? Call (847) 360-9170 and mention DCM-4822.

Features & Accessories

  • Available as a complete die cast cell including: Die Cast Machine, Rimrock 305 ladle, Cal-Miser natural gas low energy aluminum holding furnace, Kawasaki FS-030 six axis robot for die spray and part extract. Premier Die Casting Company Die Cast Cell #9
  • Works on either operator or helper side of machine - quick, simple change-over
  • Automatic Pour Back feature
  • Simple Mechanism, interchangeable parts with other Rimrock Models
  • Rimrock Parts and Service Support
  • Compact Size - Small footprint on floor
  • Equipped with Factory Rimrock Triangle Controls

Item Specifications for DCM-4822

USMetric
Stroke (adjustable):40 to 70 Inches1016 to 1778 mm
Pour Capacity (Aluminum):50 pounds maximum22.7 kg maximum
Power Requirements:120/1/60120/1/60
Draw-down:17 inches maximum431 mm maximum
Cycle Speed:AdjustableAdjustable
Pour Contour:Adjustable 3 speed & 3 positionsAdjustable 3 speed & 3 positions
Maximum tilt of unit:+/- 6 degrees+/- 6 degrees
Controls:Rimrock TriangleRimrock Triangle

Video

Documents

Description

Used, Rimrock Model 305 70 Inches of Stroke with 50 Pound Maximum Pour Capacity Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations For_Sale, Features Include: Works on either operator or helper side of machine - quick, simple change-over, Automatic Pour Back feature, Simple Mechanism, interchangeable parts with other Rimrock Models, Rimrock Parts and Service Support, Compact Size - Small footprint on floor, Equipped with Factory Rimrock Triangle Controls, Rimrock Triangle controls, second Hand, DCM-4822
