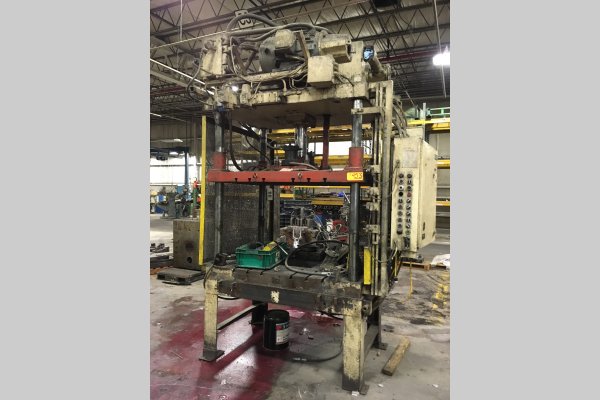

Used Metal Mechanics Model: 50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 23| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | 50 |
| Size | 50 Ton |
| Inventory Number | DCM-4665 |
Metal Mechanics - 50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley SLC 5/04 Solid State Controls
Questions? Call (847) 360-9170 and mention DCM-4665.
Features & Accessories
- Special Feature: Twin Cylinder Guided Platen Hydraulic Ejection System
- Air Safety Ratchet
- T-Slotted Base and Moving Platen
- Allen Bradley SLC Controls
- Full Electrical and Hydraulic Documents including Schematics
- Up to five (5) Auxiliary Hydraulic Side Core Punches Circuits Available
- Three Sided Expanded Metal Guarding with Swinging Rear Doors
Item Specifications for DCM-4665
| US | Metric | |
| Model: | DCT-50 | DCT-50 |
| Pressing Tonnage: | 50 ton | 45.45 ton |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 3.5 inches | 88 mm |
| Daylight: | 44 inches | 1,117 mm |
| Stroke: | 28 inches | 711 mm |
| Shut Height: | 16 inches | 406 mm |
| Clearance between Tie Bars (Left to Right): | 52.5 inches | 1,320 mm |
| Clearance between Tie Bars (Front to Back): | 32.5 inches | 825 mm |
| Bed Size (Left to Right by Front to Back): | 62.5 x 42.5 inches | 1,587 x 1,0799 mm |
| Cut out Size in Bed (L/R x F/B): | 16 x 12 inches | 482 x 304 mm |
| Approximate Footprint (L/R x F/B x Height): | 87 x 76 x 147 inches | 2,210 x 1,930 x 3,733 mm |
Documents
- Metal Mechanics 50 ton Manual, serial number 22002PDF · 19.5 MB
Description
Used, Metal Mechanics Model 50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, T-Slotted Base and Moving Platen, Allen Bradley SLC Controls, Full Electrical and Hydraulic Documents including Schematics, Up to five (5) Auxiliary Hydraulic Side Core Punches Circuits Available, Three Sided Expanded Metal Guarding with Swinging Rear Doors, Allen Bradley SLC 5/04 Solid State controls, second Hand, DCM-4665
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
