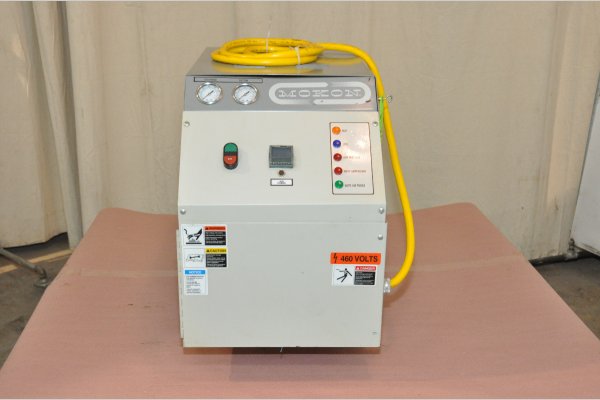

Used Mokon Hot Water Model: DB4309D1 9 KW Single Zone Portable Hot Water Process Heater Temperature control Unit
1 / 18| Status | Sold |
|---|---|
| Manufacturer | Mokon Hot Water |
| Model | DB4309D1 |
| Size | 9 KW |
| Inventory Number | DCM-4645 |
Mokon Hot Water - DB4309D1 9 KW Single Zone Portable Hot Water Process Heater Temperature control Unit, Controls
View Available Hot Water Units
Questions? Call (847) 360-9170 and mention DCM-4645.
Features & Accessories
- Mokon Dependability - Duratherm HTP Series
- Horizontal Stainless Steel Heater Canister with unique turbulent flow diverter to maximize heat-transfer efficiency
- Unit Mounted on Casters for easy movement, Casters can be removed for fixed location use
- Eurotherm 2216e PID Microprocessor-based digital temperature controller
- High Temperature Safety Shut-off Switch and Low Pressure Safety Shut-off Switch
- Cast Iron Pump Construction Rated Up To 300 F (149 C)
Item Specifications for DCM-4645
| US | Metric | |
| Main Heater Power (Zone #1): | 9 KW | 9 KW |
| Pump Motor Size (Zone #1): | 1.5 HP | 1.19 kw |
| Flow Rate (Zone #1): | 25 gallons per minute | 95 liters per minute |
| Connection size/type (Zone #1): | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 300 degrees F | 149 degrees C |
| Control Unit: | Eurotherm 2216e | Eurotherm 2216e |
| Overall Size (L x W x H): | 28 x 16 x 25 inches | 711 x 406 x 635 mm |
| Full Load Amps @ 460/3/60: | 13.8 amp | 13.8 amp |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Video
Description
Used, Mokon Hot Water Model DB4309D1 9 KW Single Zone Portable Hot Water Process Heater Temperature control Unit For_Sale, Features Include: Mokon Dependability - Duratherm HTP Series, Horizontal Stainless Steel Heater Canister with unique turbulent flow diverter to maximize heat-transfer efficiency, Unit Mounted on Casters for easy movement, Casters can be removed for fixed location use, Eurotherm 2216e PID Microprocessor-based digital temperature controller, High Temperature Safety Shut-off Switch and Low Pressure Safety Shut-off Switch, Cast Iron Pump Construction Rated Up To 300 F (149 C), controls, second Hand, DCM-4645
