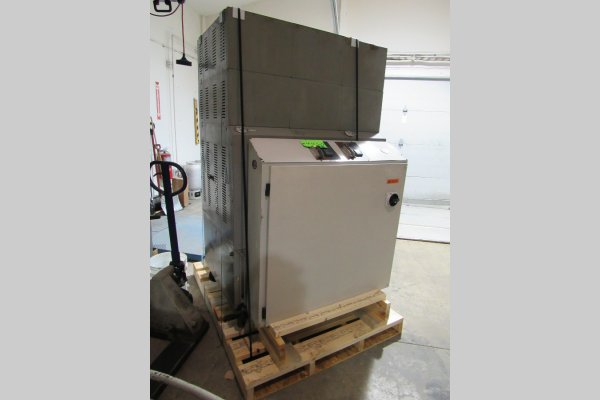

Used Mokon Model: H64248Z6 96 KW (48 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H64248Z6 |
| Size | 96 KW (48 kw per zone) |
| Inventory Number | DCM-4450 |
Mokon - H64248Z6 96 KW (48 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 2404 Controls
Questions? Call (847) 360-9170 and mention DCM-4450.
Features & Accessories
- HTF 600 Series Mokon Dependability
- Mokon HF-2 Series with 600 Series Temperature Range
- Water Cooling Circuit
- Built-in pump pressure relief valve
- Unit on casters for easy movement
Item Specifications for DCM-4450
| US | Metric | |
| Main Heater Power (Zone #1): | 48 KW | 48 KW |
| Pump Motor Size (Zone #1): | 2 HP | 4.49 KW |
| Flow Rate (Zone #1): | 20 gallons per minute | 75.7 liters per minute |
| Connection size/type (Zone #1): | 1 inch NPT | 1 inch NPT |
| Main Heater Power (Zone #2): | 48 KW | 48 KW |
| Pump Motor Size (Zone #2): | 2HP | 1.49 KW |
| Flow Rate (Zone #2): | 20 gallons per minute | 75.7 liters per minute |
| Connection size/type (Zone #2): | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 600 degrees F | 315 degrees C |
| Overall Size (L x W x H): | 41 x 61 x 62 inches | 1,041 x 1,550 x 1,575 mm |
| Full Load Amps @ 460/3/60: | 128.2 amp | 127 amp |
Video
Documents
Description
Used, Mokon Model H64248Z6 96 KW (48 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 600 Series Mokon Dependability, Mokon HF-2 Series with 600 Series Temperature Range, Water Cooling Circuit, Built-in pump pressure relief valve, Unit on casters for easy movement, Eurotherm 2404 controls, second Hand, DCM-4450
