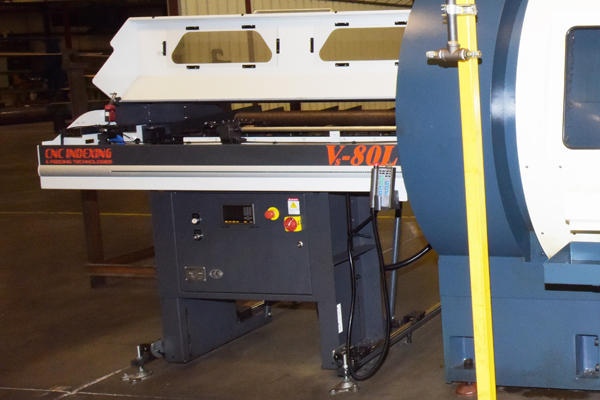

Used CNC Indexing Feeding Technologies Model: VS 80L Tracer 60 inch
1 / 2| Status | Sold |
|---|---|
| Manufacturer | CNC Indexing Feeding Technologies |
| Model | VS 80L Tracer |
| Size | 60 inch |
| Inventory Number | DCM-4413 |
CNC Indexing Feeding Technologies - VS 80L Tracer 60 inch , Servo-Feed Controls
Questions? Call (847) 360-9170 and mention DCM-4413.
Features & Accessories
- CNC VS 80L Indexing and Feeding Technologies Servo Bar Feeder
- Servo style short loader
- 100 job program memory
- Offers patented LED strip for process monitoring from a distance
- Can feed to a stop or preset dimension and has a sub-spindle mode
- Small footprint
Item Specifications for DCM-4413
| US | Metric | |
| Bar Diameter Capacity: | 0.318 to 3.15 inches | 8.0 to 80 mm |
| Maximum Bar Length: | 60 inches | 1524 mm |
| Dimensions: | 47 x 80 x 52 inches | 1193 x 2032 x 1321 mm |
| Weight: | 882 pounds | 400 kg |
| Power Requirements: | 220 volt, 60 cycle, single phase | 220 volt, 60 cycle, single phase |
| Feeding Direction: | Right | Right |
| Magazine Capacity: | Seven (7) Bars | Seven (7) Bars |
| Lathe Capapability: | Fixed Headstock | Fixed Headstock |
Description
Used, CNC Indexing Feeding Technologies Model VS 80L Tracer 60 inch For_Sale, Features Include: Servo style short loader, 100 job program memory, Offers patented LED strip for process monitoring from a distance, Can feed to a stop or preset dimension and has a sub-spindle mode, Small footprint, Servo-Feed controls, second Hand, DCM-4413
