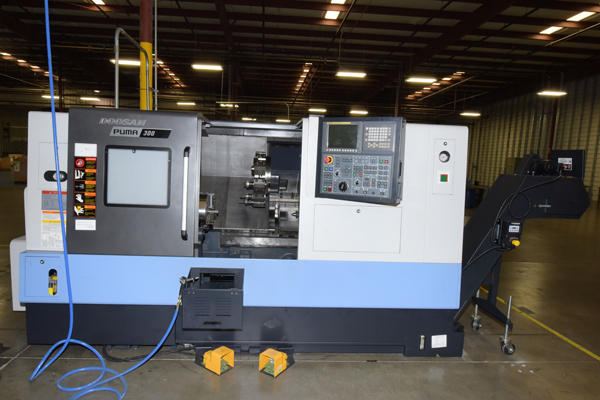

Used Doosan Model: Puma 300C Puma_300C_25 HP Two Axis CNC Turning Center (2 axis CNC lathe)
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Doosan |
| Model | Puma 300C |
| Size | Puma_300C_25 HP |
| Inventory Number | DCM-4405 |
Doosan - Puma 300C Puma_300C_25 HP Two Axis CNC Turning Center (2 axis CNC lathe), Doosan Fanuc Series 0i-TD Controls
Questions? Call (847) 360-9170 and mention DCM-4405.
Features & Accessories
- New in 2015 - Very low Hours
- 2 Speed Gearbox on Spindle
- Square Box Ways Design
- Chip Conveyor
- Hydraulic Programmable Tailstock and Quill
Item Specifications for DCM-4405
| US | Metric | |
| Spindle Power/Maximum Spindle Speed: | 35 hp/2,800 RPM | 26 kW/2,800 RPM |
| Spindle Nose & Bore: | A2-11/4.53 inch | A2-11/115 mm |
| Turret - Number of Tools: | 12 Stations | 12 Stations |
| Swing Over Bed: | 9.80 inch/590 inches per minute | 250 mm/15 meters per minute |
| Z-Axis Travel & Feedrate: | 25.6 inch/393 inches per minute | 650 mm/10 meters per minute |
| Chuck Size: | 10 inches | 254 mm |
| Swing Over Bed: | 22.8 inches | 580 mm |
| Swing Over Cross Slide: | 17.7 inches | 450 mm |
| Coolant Capacity: | 30 Gallon | 114 Liter |
| Overall Dimensions (L x D x H): | 167.9 x 91.3 x 81.1 inches | 4265 x 2320 x 2060 mm |
| Machine Weight: | 13,640 pounds | 6,200 kg |
Description
Used, Doosan Model Puma 300C Puma_300C_25 HP Two Axis CNC Turning Center (2 axis CNC lathe) For_Sale, Features Include: 2 Speed Gearbox on Spindle, Square Box Ways Design, Chip Conveyor, Hydraulic Programmable Tailstock and Quill, Doosan Fanuc Series 0i-TD controls, second Hand, DCM-4405
