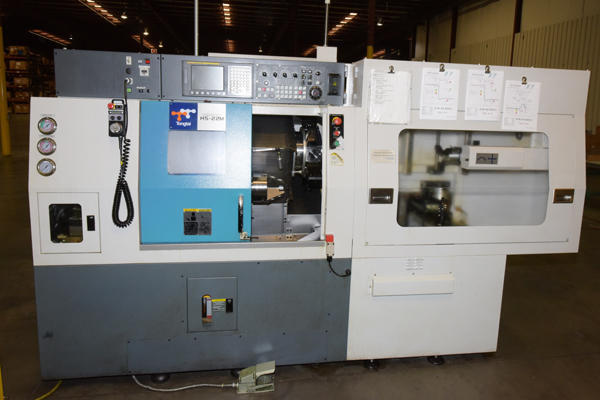

Used Tongtai Model: HS-22M+Loading Topper HS-22M_Milling_+_Loading_220 mm_Turning_Capacity Three Axis CNC Turning Centers (3 Axis Lathes)
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Tongtai |
| Model | HS-22M+Loading Topper |
| Size | HS-22M_Milling_+_Loading_220 mm_Turning_Capacity |
| Inventory Number | DCM-4404 |
Tongtai - HS-22M+Loading Topper HS-22M_Milling_+_Loading_220 mm_Turning_Capacity Three Axis CNC Turning Centers (3 Axis Lathes), Fanuc 0i-TD Controls
Questions? Call (847) 360-9170 and mention DCM-4404.
Features & Accessories
- New in 2014 - Very low Hours
- Tongtai Part Loader/Unloader
- High Rigidity Square Box Ways Design
- Chip Conveyor System
- Live Tooling on Turret with VDI-40 Tooling and C-Axis
Item Specifications for DCM-4404
| US | Metric | |
| Machine Type: | 3 Axis CNC Turning/Milling Center (C-Axis) | 3 Axis CNC Turning/Milling Center (C-Axis) |
| Spindle Speed/Power: | 6,000 RPM/10 hp | 6,000 RPM/7.5 kw |
| Maximum Turning Diameter: | 7.87 inches | 200 mm |
| Maximum Work Length: | 7.87 inches | 200 mm |
| Tooling Capacity: | 12 Positions | 12 Positions |
| Live Tooling - RPM/Power/Type | 6,000 RPM/7.37 hp/VDI-40 | 6,000 RPM/5.5 kw/VDI-40 |
| X/Z Axis Motor Power: | 2.4 hp & 2.4 hp | 1.8 kw & 1.8 kw |
| X/Z Axis Rapid Traverse: | 787 inches per second | 20 meters per minute |
| Coolant Capacity: | 17 Gallon | 65 Liter |
| Overall Dimensions (L x D x H): | 103 x 76 x 70 inches | 2610 x 1910 x 1760 mm |
| Machine Weight: | 5,280 pounds | 2,400 kg |
Description
Used, Tongtai Model HS-22M+Loading Topper HS-22M_Milling_+_Loading_220 mm_Turning_Capacity Three Axis CNC Turning Centers (3 Axis Lathes) For_Sale, Features Include: Tongtai Part Loader/Unloader, High Rigidity Square Box Ways Design, Chip Conveyor System, Live Tooling on Turret with VDI-40 Tooling and C-Axis, Fanuc 0i-TD controls, second Hand, DCM-4404
