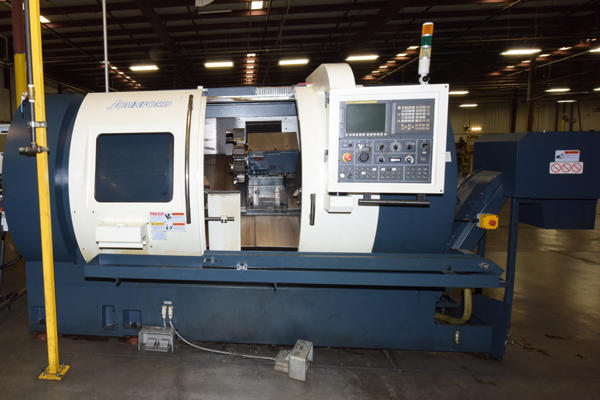

Used Johnford Model: SL-500 SL-500_10_Inch_25 HP Two Axis CNC Turning Center (2 axis CNC lathe)
1 / 7| Status | Sold |
|---|---|
| Manufacturer | Johnford |
| Model | SL-500 |
| Size | SL-500_10_Inch_25 HP |
| Inventory Number | DCM-4403 |
Johnford - SL-500 SL-500_10_Inch_25 HP Two Axis CNC Turning Center (2 axis CNC lathe), Fanuc 0i-TD Controls
Questions? Call (847) 360-9170 and mention DCM-4403.
Features & Accessories
- New in 2013 - Very low Hours
- 2 Speed Gearbox on Spindle
- Square Box Ways Design
- Chip Conveyor
- Hydraulic Programmable Tailstock and Quill
Item Specifications for DCM-4403
| US | Metric | |
| Spindle Power/Maximum Spindle Speed: | 25 hp/3,500 RPM | 18.5 kW/3,500 RPM |
| Spindle Nose & Bore: | A2-8/3.4 inch | A2-8/85 mm |
| Turret - Number of Tools: | 12 Stations | 12 Stations |
| X-Axis Travel & Rapid Traverse: | 9.80 inch/590 inches per minute | 250 mm/15 meters per minute |
| Z-Axis Travel & Feedrate: | 25.6 inch/393 inches per minute | 650 mm/10 meters per minute |
| Chuck Size: | 10 inches | 254 mm |
| Swing Over Bed: | 22.8 inches | 580 mm |
| Swing Over Cross Slide: | 17.7 inches | 450 mm |
| Programmable Tailstock & Quill: | Yes | Yes |
| Coolant Capacity: | 30 Gallon | 114 Liter |
| Overall Dimensions (L x D x H): | 167.9 x 91.3 x 81.1 inches | 4265 x 2320 x 2060 mm |
| Machine Weight: | 13,640 pounds | 6,200 kg |
Description
Used, Johnford Model SL-500 SL-500_10_Inch_25 HP Two Axis CNC Turning Center (2 axis CNC lathe) For_Sale, Features Include: 2 Speed Gearbox on Spindle, Square Box Ways Design, Chip Conveyor, Hydraulic Programmable Tailstock and Quill, Fanuc 0i-TD controls, second Hand, DCM-4403
