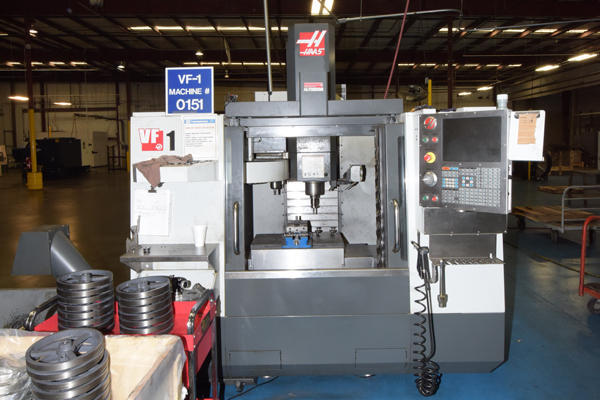

Used Haas Model: VF-1 VF-1_20_x_16_x_20 inch Three Axis CNC Vertical Machining Centers (VMC)
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Haas |
| Model | VF-1 |
| Size | VF-1_20_x_16_x_20 inch |
| Inventory Number | DCM-4402 |
Haas - VF-1 VF-1_20_x_16_x_20 inch Three Axis CNC Vertical Machining Centers (VMC), Haas CNC Controls
View Available CNC Vertical Machining Centers
Questions? Call (847) 360-9170 and mention DCM-4402.
Features & Accessories
- New in 2013 - Very low Hours
- Auger Type Chip Conveyor
- 8100 RPM Inline Direct Drive Spindle Drive
- 15 Inch Color LCD Monitor
- 1 GB Program Memory
- Rigid Tapping
- 55 Gallon Coolant Capacity with Flood Coolant System
Item Specifications for DCM-4402
| US | Metric | |
| Spindle Power/Maximum Spindle Speed: | 30 hp/8,100 RPM | 22.4 kw/8,100 rpm |
| Spindle Nose to Table Maximum/Minimum: | 24.0/4.0 inches | 610/102 mm |
| Spindle Torque: | 90 ft-lb @ 2,000 rpm | 122 Nm @ 2,000 rpm |
| Spindle Taper: | CAT 40 | CAT 40 |
| Spindle Drive System: | Inline Direct-Drive | Inline Direct-Drive |
| Table Size/Maximum Weight: | 26 x 14 inches/3,000 pounds | 660 x 356 mm/1361 kg |
| Automatic Tool Changer (ATC) Capacity: | 20 | 20 |
| X-Axis Travel & Feedrate: | 20 inch/1,000 inches per minute | 508 mm/25.4 meters per minute |
| Y-Axis Travel & Feedrate: | 16 inch/1,000inches per minute | 406 mm/25.4 meters per minute |
| Z-Axis Travel & Feedrate: | 20 inches/1,000 inches per minute | 508 mm/25.4meters per minute |
| Coolant Capacity: | 55 gallon | 208 liter |
| Overall Dimensions (L x D x H): | 161 x 115 x 121 inches | 4089 x 2921 x 3073 mm |
Documents
- Haas VF-1 _ Haas Automation, Inc. _ CNC Machine Tools SpecificationsPDF · 1.1 MB
- Haas VF-1 DimensionsPDF · 974 KB
- Haas VF-1 Shipping DimensionsPDF · 172 KB
Description
Used, Haas Model VF-1 VF-1_20_x_16_x_20 inch Three Axis CNC Vertical Machining Centers (VMC) For_Sale, Features Include: Auger Type Chip Conveyor, 8100 RPM Inline Direct Drive Spindle Drive, 15 Inch Color LCD Monitor, 1 GB Program Memory, Rigid Tapping, 55 Gallon Coolant Capacity with Flood Coolant System, Haas CNC controls, second Hand, DCM-4402
