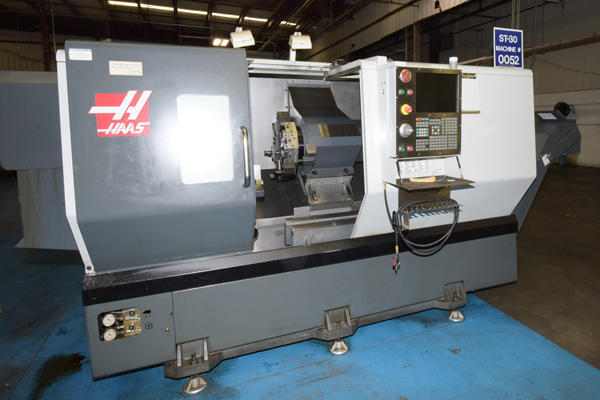

Used Haas Model: ST-30 ST-30_21_x_26 inch Two Axis CNC Turning Center (2 axis CNC lathe)
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Haas |
| Model | ST-30 |
| Size | ST-30_21_x_26 inch |
| Inventory Number | DCM-4397 |
Haas - ST-30 ST-30_21_x_26 inch Two Axis CNC Turning Center (2 axis CNC lathe), Haas CNC Controls
Questions? Call (847) 360-9170 and mention DCM-4397.
Features & Accessories
- New in 2015 - Very low Hours
- Link-Belt Type Chip Conveyor
- Automatic Tool PreSetter
- 15 Inch Color Monitor
Item Specifications for DCM-4397
| US | Metric | |
| Spindle Power/Maximum Spindle Speed: | 30 hp/3,400 rpm | 22.4 kw/3,400 rpm |
| Spindle Nose & Bore: | A2-6/3.50 inch | A2-6/88.9 mm |
| Turret - Number of Tools: | 12 Stations | 12 Stations |
| X-Axis Travel & Speed: | 12.5 inch/945 inches per minute | 318 mm/24 meters per minute |
| Z-Axis Travel & Speed: | 26 inch/945 inches per minute | 660 mm/24 meters per minute |
| Chuck Size: | 10 inches | 254 mm |
| Maximum Cutting Diameter: | 21.0 inches | 533 mm |
| Maximum Cutting Length: | 26.0 inches | 660 mm |
| Maximum Part Diameter over Apron/Cross Slide: | 31.75/20.75 inches | 806/527 mm |
| Coolant Capacity: | 55 gallon | 208 liter |
| Overall Dimensions (L x D x H): | 178 x 120 x 96 inches | 4521 x 3048 x 2438 mm |
Description
Used, Haas Model ST-30 ST-30_21_x_26 inch Two Axis CNC Turning Center (2 axis CNC lathe) For_Sale, Features Include: Link-Belt Type Chip Conveyor, Automatic Tool PreSetter, 15 Inch Color Monitor, Haas CNC controls, second Hand, DCM-4397
