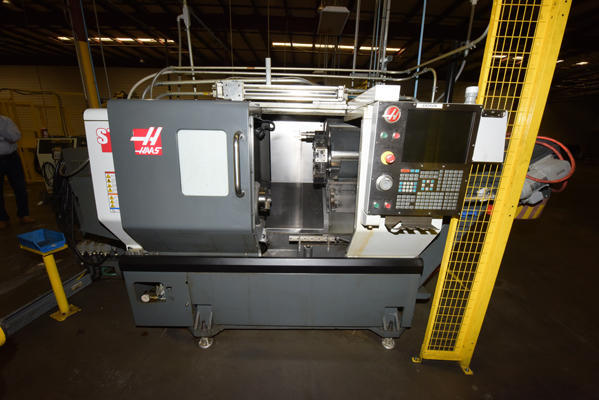

Used Haas Model: ST-10 ST-10_14_x_16 inch Two Axis CNC Turning Center (2 axis CNC lathe)
1 / 4| Status | Sold |
|---|---|
| Manufacturer | Haas |
| Model | ST-10 |
| Size | ST-10_14_x_16 inch |
| Inventory Number | DCM-4391 |
Haas - ST-10 ST-10_14_x_16 inch Two Axis CNC Turning Center (2 axis CNC lathe), Haas CNC Controls
Questions? Call (847) 360-9170 and mention DCM-4391.
Features & Accessories
- New in 2015 - Very low Hours
- Link-Belt Type Chip Conveyor
- Automatic Tool PreSetter
- 15 Inch Color Monitor
Item Specifications for DCM-4391
| US | Metric | |
| Spindle Power/Maximum Spindle Speed: | 15 hp/6,000 RPM | 11.2 kW/6,000 RPM |
| Spindle Nose & Bore: | A2-5/2.31 | A2-5/58.7 mm |
| Turret - Number of Tools: | 12 Stations | 12 Stations |
| X-Axis Travel & Speed: | 7.88 inch/1200 inches per minute | 200.2 mm/30.5 meters per minute/14,679 Newtons |
| Z-Axis Travel & Speed: | 16 inch/1200 inches per minute | 406 mm/30.5 meters per minute |
| Chuck Size: | 6.5 inches | 165 mm |
| Maximum Cutting Diameter: | 14.0 inches | 356 mm |
| Maximum Cutting Length: | 16 inches | 406 mm |
| Maximum Part Diameter: | 16.5 inches | 419 mm |
| Coolant Capacity: | 30 Gallon | 114 Liter |
| Overall Dimensions (L x D x H): | 126 x 61 x 72.5 inches | 3200 x 1549 x 1842 mm |
Documents
Description
Used, Haas Model ST-10 ST-10_14_x_16 inch Two Axis CNC Turning Center (2 axis CNC lathe) For_Sale, Features Include: Link-Belt Type Chip Conveyor, Automatic Tool PreSetter, 15 Inch Color Monitor, Haas CNC controls, second Hand, DCM-4391
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
