SOLD

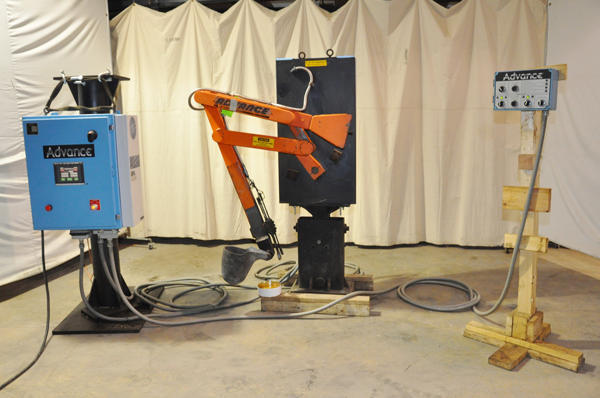

Used Advance Products Model: SL 1200 HS 25 Pound Capacity Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations

StatusSold
ManufacturerAdvance Products
ModelSL 1200 HS
Size25 Pound Capacity
Inventory NumberDCM-4370

Advance Products - SL 1200 HS 25 Pound Capacity Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations, Mitsubishi Controls

View Available Auto-Ladles

Questions? Call (847) 360-9170 and mention DCM-4370.

Features & Accessories

  • Control Version: Mitsubishi
  • Mitsubishi Solid State PLC controls with Auto Teach Mode
  • Advance Forward on Pour Command - Pour Forward
  • Helper-Side Unit
  • Adjust shot weight on the fly during operation
  • LCD Color Touch-Screen HMI with up to 500 program storage
  • Equipment with Remote Operator Push-Button Control Station

Item Specifications for DCM-4370

USMetric
Total Stroke (Maximum):Adjustable 71 inchesAdjustable 1800 mm
Forward Stroke (Maximum):Adjustable 50 inchesAdjustable 1270 mm
Reach Back:Adjustable 21 inchesAdjustable 530 mm
Pour Capacity (Aluminum):25 pounds11 Kg
Cycle Speed:AdjustableAdjustable
Power Requirements208-230/3/60 20 amp208-230/3/60 20 amp
Motor Drive:Brushless ServoBrushless Servo
Side of Operation:Helper SideHelper Side
HMI Interface:Touch-Screen Color LCDTouch-Screen Color LCD
Program Storage Capacity:500 programs500 programs
Control Weight:250 pounds114 KG
Mechanism Weight (power-head):750 pounds341 KG

Video

Documents

Description

Used, Advance Products Model SL 1200 HS 25 Pound Capacity Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations For_Sale, Features Include: Mitsubishi Solid State PLC controls with Auto Teach Mode, Advance Forward on Pour Command - Pour Forward, Helper-Side Unit, Adjust shot weight on the fly during operation, LCD Color Touch-Screen HMI with up to 500 program storage, Equipment with Remote Operator Push-Button Control Station, Mitsubishi controls, second Hand, DCM-4370

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
