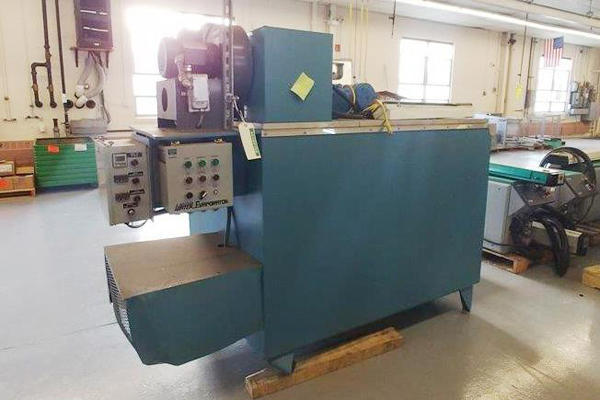

Used Samsco Model: 600 Series 39 Gallon Per Hour
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Samsco |
| Model | 600 Series |
| Size | 39 Gallon Per Hour |
| Inventory Number | DCM-4358 |
Samsco - 600 Series 39 Gallon Per Hour , Samsco Controls
View Available Waste Water Evaporators
Questions? Call (847) 360-9170 and mention DCM-4358.
Features & Accessories
- Elevated Heat Exchanger Tubes for Easy Clean-Out of Unit and Helps Prevent
- Standard
- Simple Full Function Control Station
- Can be used with
Item Specifications for DCM-4358
| US | Metric | |
| Heat Input Max.: | 395,000 Btu | 395,000 Btu |
| Evaporation Rate (Auto): | 33 gal/hr | 124.9 liter/hr |
| Evaporation Rate (Batch): | 39 gal/hr | 548.8 liter/hr |
| Heat Exchanger: | Schedule 10, 4 inch (Nominal Diameter) | Schedule 10, 10.16 mm (Nominal Diameter) |
| Vent Stack: | 6 inch Diameter | 152 mm Diameter (single wall, galvanized typical) |
| Tank Capacity: | 333 gallons | 1,260 liters |
| Tank Insulation: | 1 inch thick, 250 degrees Fahrenheit | 25.4 mm thick, 121 degrees Celsius |
| Tank Design: | Sloped Bottom | Sloped Bottom |
| Inlet Port: | 1-1/2 inch NPTF with fill standpipe | 1-1/2 inch NPTF with fill standpipe |
| Clean-out Port: | 4 inch NPT Pipe | 4 inch NPT Pipe |
| Power Supply: | 115 volt/15 amp/Single Phase | 115 volt/15 amp/Single Phase |
| Weight: | 800 pounds | 364 Kg |
Documents
Description
Used, Samsco Model 600 Series 39 Gallon Per Hour For_Sale, Features Include: Elevated Heat Exchanger Tubes for Easy Clean-Out of Unit and Helps Prevent, Standard, Simple Full Function Control Station, Can be used with, Samsco controls, second Hand, DCM-4358
