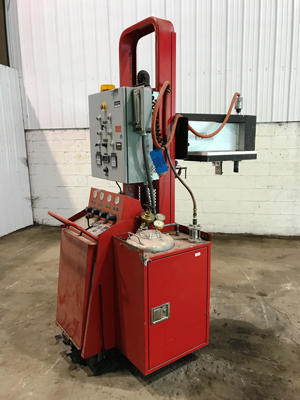

Used Pyrotek Model: PAL-2400A-DEGX 35 2400 Pound Per hour Degassing in Aluminum Alloy Rotary Degassing and Fluxing Unit for Aluminum Alloys
1 / 3| Status | Sold |
|---|---|
| Manufacturer | Pyrotek |
| Model | PAL-2400A-DEGX 35 |
| Size | 2400 Pound Per hour Degassing in Aluminum Alloy |
| Inventory Number | DCM-4237 |
Pyrotek - PAL-2400A-DEGX 35 2400 Pound Per hour Degassing in Aluminum Alloy Rotary Degassing and Fluxing Unit for Aluminum Alloys, Allen Bradley Micrologix 1000 PLC Controls with Allen Bradley PanelView 300 Micro HMI - Human Machine Interface Controls
View Available Rotary Degassing
Questions? Call (847) 360-9170 and mention DCM-4237.
Features & Accessories
- Automatic Cycle Operation - Machine Can Run Unattended - Refer to Owner's Manual for Details
- Allen Bradley Micrologix 1200 PLC Controls with PanelView 300 HMI
- Works with Argon or Nitrogen
- Up To 65% Decrease in Hydrogen Content
- Can work in Bull Ladle, In-Line Degassing, Charge Well or Dip-out Well Applications
- Variable Speed Rotor-Shaft-Drive for Maximum Efficiency Based on Application
Item Specifications for DCM-4237
| US | Metric | |
| Model: | PAL-2400A-DEGX 35 | PAL-2400A-DEGX 35 |
| Degassing Gas Used: | Nitrogen or Argon | Nitrogen or Argon |
| Degassing Gas Flow Requirements: | 100 SCFH @ 50 PSIG | 47 LPM @ 3.5 BAR |
| Shop Compressed Air Requirements: | 50 SCFH @ 100 PSIG | 24 LPM @ 6.9 BAR |
| Power Requirements: | 480/3/60 | 480/3/60 |
| Machine Control: | Allen Bradley Micrologix 1000 | Allen Bradley Micrologix 1000 |
| Approximate Machine Weight: | 980 pounds | 446 KG |
| Degassing Rotor Speed (adjustable): | 0 - 450 RPM | 0 - 450 RPM |
| Typical Degassing Setting: | 40 SCFH Nitrogen; 350 RPM, 1,300 Fahrenheit Metal Temp | 18 LPM Nitrogen; 350 RPM, 705 Celsius Metal Temp |
| Distance Between Column to Center of Rotor Shaft: | 36 inches | 914 mm |
| Maximum Distance Bottom of Rotor to Floor: | 52 inches | 1,321 mm |
| Rotor Shaft Length: | 28 inches | 711 mm |
Description
Used, Pyrotek Model PAL-2400A-DEGX 35 2400 Pound Per hour Degassing in Aluminum Alloy Rotary Degassing and Fluxing Unit for Aluminum Alloys For_Sale, Features Include: Automatic Cycle Operation - Machine Can Run Unattended - Refer to Owner's Manual for Details, Allen Bradley Micrologix 1200 PLC Controls with PanelView 300 HMI, Works with Argon or Nitrogen, Up To 65% Decrease in Hydrogen Content, Can work in Bull Ladle, In-Line Degassing, Charge Well or Dip-out Well Applications, Variable Speed Rotor-Shaft-Drive for Maximum Efficiency Based on Application, Allen Bradley Micrologix 1000 PLC Controls with Allen Bradley PanelView 300 Micro HMI - Human Machine Interface controls, second Hand, DCM-4237
