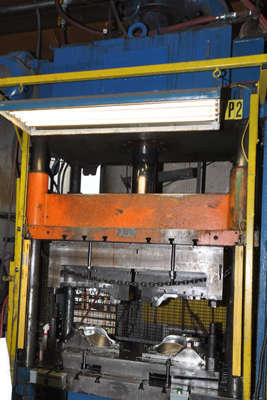

Used Prince Trim Press Model: T-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 7| Status | Sold |
|---|---|
| Manufacturer | Prince Trim Press |
| Model | T-50 |
| Size | 50 Ton |
| Inventory Number | DCM-4060 |
Prince Trim Press - T-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley SLC 5/05 Controls
View Available Vertical Trim Presses
Questions? Call (847) 360-9170 and mention DCM-4060.
Features & Accessories
- T-Slotted Platens - Top and Bottom
- Allen Bradley SLC 5/05 PLC Controls
- Top Mounted Hydraulics
- Air Safety Ratchet Device
- Dual Palm-Button Operation
- Automatic Lubrication System
Item Specifications for DCM-4060
| US | Metric | |
| Pressing Tonnage: | 50 tons | 45.45 tons |
| Daylight: | 36 inches | 914 mm |
| Stroke: | 24 inches | 609 mm |
| Shut Height: | 12 inches | 304 mm |
| Clearance between Tie bars (Left to Right): | 54 inches | 1371 mm |
| Clearance between Tie bars (Front to Back): | 32 inches | 812 mm |
| Bed Size (left to right): | 66 inches | 1,676 mm |
| Bed Size (front to back) | 44 inches | 1,176 mm |
| Cut-out in Base Platen: | 18 x 10 inches | 457 x 254 mm |
| Column Diameter: | 4 inches | 1,016mm |
| Travel Speeds (approach/pressing/return): | 900/170/900 inches per minute | 22.86/4.31/22.89 meters per minute |
| Approximate Weight: | 16,000 Pounds | 7,272 KG |
Description
Used, Prince Trim Press Model T-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: T-Slotted Platens - Top and Bottom, Allen Bradley SLC 5/05 PLC Controls, Top Mounted Hydraulics, Air Safety Ratchet Device, Dual Palm-Button Operation, Automatic Lubrication System, Allen Bradley SLC 5/05 controls, second Hand, DCM-4060
