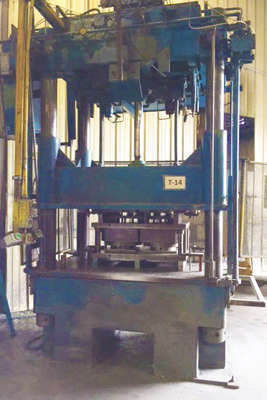

Used Dake Corporation Model: DCT-75 75 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Dake Corporation |
| Model | DCT-75 |
| Size | 75 Ton |
| Inventory Number | DCM-4048 |
Dake Corporation - DCT-75 75 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, GE-Fanuc PLC Controls
View Available Vertical Trim Presses
Questions? Call (847) 360-9170 and mention DCM-4048.
Features & Accessories
- Drilled and Tapped Top and Bottom Platens
- GE Fanuc PLC controls
- Top Mounted Hydraulics
- Mechanical Ejection Points
Item Specifications for DCM-4048
| US | Metric | |
| Pressing Tonnage: | 75 tons | 68 tons |
| Daylight: | 38-1/2 inches | 977 mm |
| Stroke: | 29 inches | 736 mm |
| Shut Height: | 9-1/2 inches | 241 mm |
| Clearance between Tie bars (Left to Right): | 60 inches | 1524 mm |
| Clearance between Tie bars (Front to Back): | 30 inches | 762 mm |
| Bed Size (left to right): | 77-1/2 inches | 1968 mm |
| Bed Size (front to back) | 47 inches | 1193 mm |
| Cut-out in Base Platen: | 18 x 10 inches | 457 x 254 mm |
| Column Diameter: | 6 inches | 152 mm |
Video
Description
Used, Dake Corporation Model DCT-75 75 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Drilled and Tapped Top and Bottom Platens, GE Fanuc PLC controls, Top Mounted Hydraulics, Mechanical Ejection Points, GE-Fanuc PLC controls, second Hand, DCM-4048
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
