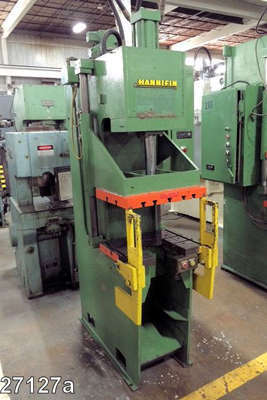

Used Hannifin Press Model: OGF-12D 12 Ton C-Frame (Gap Frame) Vertical Hydraulic Die Cast Trimming Press
1 / 2| Status | Sold |
|---|---|
| Manufacturer | Hannifin Press |
| Model | OGF-12D |
| Size | 12 Ton |
| Inventory Number | DCM-4041 |
Hannifin Press - OGF-12D 12 Ton C-Frame (Gap Frame) Vertical Hydraulic Die Cast Trimming Press, Relay Logic Control Controls
View Available C-Frame Presses
Questions? Call (847) 360-9170 and mention DCM-4041.
Features & Accessories
- T-Slotted Moving and Bed Platens
- Two (2) Guide Posts Guiding Moving Platen
- Pushbutton operation with Stroke & Pressure Control
Item Specifications for DCM-4041
| US | Metric | |
| Model: | OGF-12D | OGF-12D |
| Pressing Tonnage: | 12 tons | 10.88 tons |
| Number of Guide Posts/Diameter: | 2/2.5 inches | 2/63.5 mm |
| Ram Diameter: | 4/2.5 inches | 101/63.5 mm |
| Daylight: | 18 inches | 457 mm |
| Stroke: | 18 inches | 457 mm |
| Shut Height: | 0 inches | 0 mm |
| Bed Size (Left to Right by Front to Back): | 29.5 x 18 inches | 749.3 x 457.2 mm |
| Cut out Size in Bed: | 6 x 10 Inches | 152.4 x 254 mm |
| Throat Depth:): | 10 | 254 mm |
| Approximate Footprint (L/R x F/B x Tall): | 42 x 56 x 116 inches | 1066 x 1422 x 2946 mm |
| Approximate Weights: | 5,000 pounds | 2267 KG |
Description
Used, Hannifin Press Model OGF-12D 12 Ton C-Frame (Gap Frame) Vertical Hydraulic Die Cast Trimming Press For_Sale, Features Include: T-Slotted Moving and Bed Platens, Two (2) Guide Posts Guiding Moving Platen, Pushbutton operation with Stroke & Pressure Control, Relay Logic Control controls, second Hand, DCM-4041
