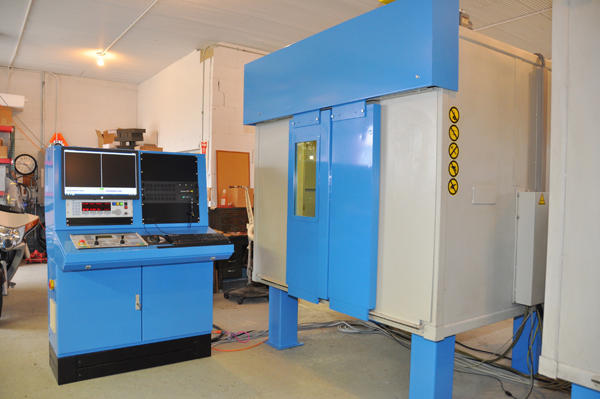

Used Yxlon Model: MU 2000 160 kvp Real Time Industrial X-ray
1 / 18| Status | Sold |
|---|---|
| Manufacturer | Yxlon |
| Model | MU 2000 |
| Size | 160 kvp |
| Inventory Number | DCM-4002 |
Yxlon - MU 2000 160 kvp Real Time Industrial X-ray, Yxlon Controls
Questions? Call (847) 360-9170 and mention DCM-4002.
Features & Accessories
- Industry Acceptance - Over 600 Yxlon MU2000 Machines Produced
- Commonly Applications: Aluminum & Magnesium Castings including engine blocks, cylinders, cylinder heads, pistons, steering knuckles; Turbine blades, Wheels, Fiber-Reinforced Materials, Ceramics, 3D Printed Materials
- Upgradeable to Digital Flat-Panel Detector Array
- Motorized Opening/Closing of Cabinet Doors
Item Specifications for DCM-4002
| US | Metric | |
| Inspection Envelope (diameter x height): | 23.62 x 35.43 inches | 600 x 900 mm |
| Maximum Part Weight: | 132 pounds | 60 kg |
| Turntable Diameter: | 15.7 inches | 400 mm |
| Radiation Cabinet (W x H x D) | 86.61 x 106.3 x 70.87 inches | 2200 x 2700 x 1800 mm |
| Door (W x H) | 29.92 x 45.28 inches | 760 x 1150 mm |
| X-ray Tube | MG 165 | MG 165 |
| Focal Spot According EN12543 | .04 inch / .04 inch | 1.0 mm / 1.0 mm |
| Focal Spot According IEC336 | 0.4 / 0.4 | 0.4 / 0.4 |
| Weight of Main Cabinet (approximate): | 8,800 pounds | 4,000 kg |
Video
Description
Used, Yxlon Model MU 2000 160 kvp Real Time Industrial X-ray For_Sale, Features Include: Industry Acceptance - Over 600 Yxlon MU2000 Machines Produced, Commonly Applications: Aluminum & Magnesium Castings including engine blocks, cylinders, cylinder heads, pistons, steering knuckles; Turbine blades, Wheels, Fiber-Reinforced Materials, Ceramics, 3D Printed Materials, Upgradeable to Digital Flat-Panel Detector Array, Motorized Opening/Closing of Cabinet Doors, Yxlon controls, second Hand, DCM-4002
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
