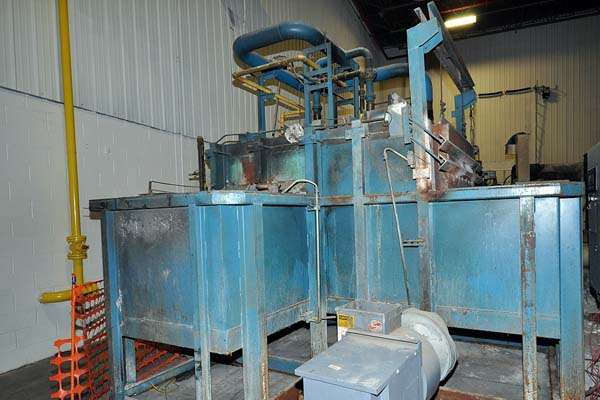

Used FW Schaefer Model: AL-MH-1200 1200 Pounds per Hour Melt Rate Reverberatory Type Wet Bath Stationary Aluminum Melting and Holding Furnace
1 / 16| Status | Sold |
|---|---|
| Manufacturer | FW Schaefer |
| Model | AL-MH-1200 |
| Size | 1200 Pounds per Hour Melt Rate |
| Inventory Number | DCM-3995 |
FW Schaefer - AL-MH-1200 1200 Pounds per Hour Melt Rate Reverberatory Type Wet Bath Stationary Aluminum Melting and Holding Furnace, FW Schaefer Controls
View Available Aluminum Melting Furnaces
Questions? Call (847) 360-9170 and mention DCM-3995.
Features & Accessories
- Has a wet charge area with heath for preheating ingots
- Compact machine melter/holder design
- Large dip-out well accommodates large ladle cup sizes
- Filtering capability on dip-out well
- Pneumatic Actuated Access Door for Furnace Cleaning
Item Specifications for DCM-3995
| US | Metric | |
| Melt Rate (aluminum): | 1,200 Pounds Per hour | 545 KG per hour |
| Bath Size (approximate): | 11,850 Pounds | 5,386 KG |
| Number of Burners and Location: | two (2) - Roof mounted | two (2) - Roof mounted |
| Charge Well Size: | 42 x 18 inches | 610 x 457 mm |
| Dip Out Well Size: | 24 x 24 inches | 609 x 609 mm |
| Metal Depth in Furnace: | 22 inches | 558 inches |
| Distance floor to top of Well: | 69.5 inches | 1,765 mm |
| Total BTU: | ||
| Equipped with Flue Cover: | Yes | Yes |
| Overall Height (approximate): | 125 inches | 3,175 mm |
| Overall length of Furnace: | 143 inches | 3,632 |
| Overall Width of Furnace: | 122 inches | 3,098 inches |
Documents
- Schaefer 1200 lbs Gas Melter - DCM 3995PDF · 201 KB
Description
Used, FW Schaefer Model AL-MH-1200 1200 Pounds per Hour Melt Rate Reverberatory Type Wet Bath Stationary Aluminum Melting and Holding Furnace For_Sale, Features Include: Has a wet charge area with heath for preheating ingots, Compact machine melter/holder design, Large dip-out well accommodates large ladle cup sizes, Filtering capability on dip-out well, Pneumatic Actuated Access Door for Furnace Cleaning, FW Schaefer controls, second Hand, DCM-3995
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
