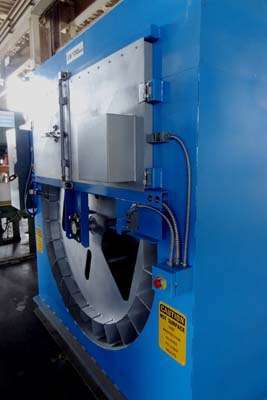

Used Dynarad Model: RL-24R 36 KW Electrically Heated Magnesium Ingot Preheater and Furnace Charging Unit
1 / 10| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Dynarad |
| Model | RL-24R |
| Size | 36 KW |
| Inventory Number | DCM-3971 |
Dynarad - RL-24R 36 KW Electrically Heated Magnesium Ingot Preheater and Furnace Charging Unit, Striko-Dynarad Controls
View Available Ingot Preheater
Questions? Call (847) 360-9170 and mention DCM-3971.
Features & Accessories
- Large Ingot Holding Capacity - 24 Ingots
- Simple Ferris-Wheel Design - Low Maintenance
- High Throughput - Up To 36 Ingots Per Hour
- Wide Range of Ingot Dimensions Can Be Accommodated
- Used Standard Dynarad
- Can be modified to Preheat Aluminum, Zinc and Zamak Ingots
Item Specifications for DCM-3971
| US | Metric | |
| System Style: | Ferris-Wheel Design | Ferris-Wheel Design |
| Ingot Capacity: | 24 pieces | 24 pieces |
| Maximum Ingot Size (W x H x L) | 6.75 x 5.75 x 27 inches | 170 x 145 x 685 mm |
| Heating Power: | 36 KW | 36 KW |
| Ingot Discharge System: | Pneumatic Cylinder | Pneumatic Cylinder |
| Maximum Ingot Preheat Temperature: | 350 Degrees Fahrenheit | 175 Degrees Celsius |
| Ingots Per Hour @ Maximum Temperature: | 36 | 36 |
| Control System: | Allen Bradley SLC 5/02 Series | Allen Bradley SLC 5/02 Series |
| Air Requirements: | 60 PSIG | 4.14 Bar |
| Power Requirements: | 480/3/60 50 amps 43.2 KW | 480/3/60 50 amps 43.2 KW |
Video
Documents
Description
Used, Dynarad Model RL-24R 36 KW Electrically Heated Magnesium Ingot Preheater and Furnace Charging Unit For_Sale, Features Include: Large Ingot Holding Capacity - 24 Ingots, Simple Ferris-Wheel Design - Low Maintenance, High Throughput - Up To 36 Ingots Per Hour, Wide Range of Ingot Dimensions Can Be Accommodated, Used Standard Dynarad, Can be modified to Preheat Aluminum, Zinc and Zamak Ingots, Striko-Dynarad controls, second Hand, DCM-3971
