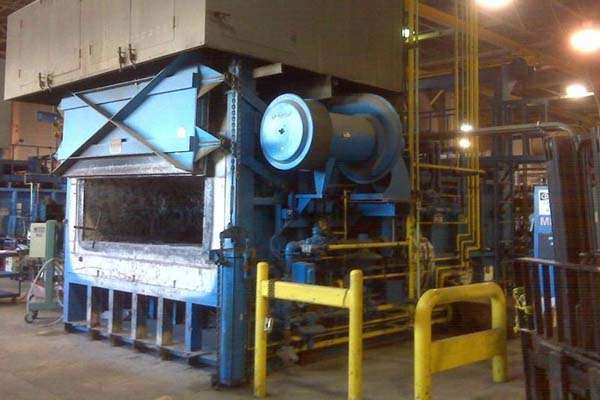

Used Lindberg MPH Model: 62-ARP-3500 3500 Pounds per Hour Melt Rate Dry Hearth Type Natural Gas Fired Stationary Aluminum Melting and Holding Furnace

Used Lindberg MPH Model: 62-ARP-3500 3500 Pounds per Hour Melt Rate Dry Hearth Type Natural Gas Fired Stationary Aluminum Melting and Holding Furnace1 / 4
StatusSold
ManufacturerLindberg MPH
Model62-ARP-3500
Size3500 Pounds per Hour Melt Rate
Inventory NumberDCM-3945

Lindberg MPH - 62-ARP-3500 3500 Pounds per Hour Melt Rate Dry Hearth Type Natural Gas Fired Stationary Aluminum Melting and Holding Furnace, Allen Bradley SLC Solid State Programmable Controls

View Available Aluminum Dry Hearth Furnace

See available Aluminum Dry Hearth FurnacePrint PDF

Questions? Call (847) 360-9170 and mention DCM-3945.

Features & Accessories

  • Pump-out Well
  • 18 x 30 inch scrap return port in side wall of furnace
  • Front and Rear Pneumatic Doors for easy Cleaning
  • Dry Hearth Primary Melting Area with Charge Door for Ingots, Sows and Scrap
  • 36 x 102 inch dry hearth charge area

Item Specifications for DCM-3945

USMetric
Furnace Type:Dry Hearth with auxiliary wet-bath charge areaDry Hearth with auxiliary wet-bath charge area
Melt Rate:3,500 pounds per hour1,590 KG per hour
Bath Capacity:31,240 pounds14,200 KG
Fuel Type:Natural GasNatural Gas
Primary Charge Well Type:Dry HearthDry Hearth
Number of Burners:33
Burner Location & Type:Roof Mounted, 2 on dry hearth, 1 on bathRoof Mounted, 2 on dry hearth, 1 on bath
Work Tap / Bottom Drain Tap:Yes & YesYes & Yes
Total BTU:7,000,000 BTU7,000,000 BTU
Smoke Incinerator:YesYes
Approximate Weight:135,000 pounds61,363 KG
Shop Footprint (L x W x H):252 x 233 x 183 inches5.29 x 5.18 meters

Documents

Description

Used, Lindberg MPH Model 62-ARP-3500 3500 Pounds per Hour Melt Rate Dry Hearth Type Natural Gas Fired Stationary Aluminum Melting and Holding Furnace For_Sale, Features Include: Pump-out Well, 18 x 30 inch scrap return port in side wall of furnace, Front and Rear Pneumatic Doors for easy Cleaning, Dry Hearth Primary Melting Area with Charge Door for Ingots, Sows and Scrap, 36 x 102 inch dry hearth charge area, Allen Bradley SLC Solid State Programmable controls, second Hand, DCM-3945
