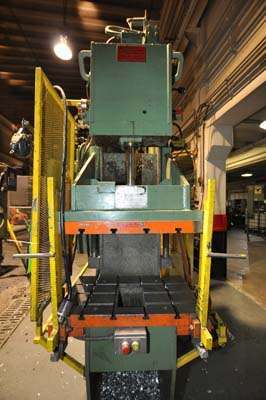

Used Hannifin Press Model: GFTP-12 12 Ton Guided Platen Gap Frame Hydraulic Trim Press
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Hannifin Press |
| Model | GFTP-12 |
| Size | 12 Ton |
| Inventory Number | DCM-3933 |
Hannifin Press - GFTP-12 12 Ton Guided Platen Gap Frame Hydraulic Trim Press, Relay Logic Control Controls
Questions? Call (847) 360-9170 and mention DCM-3933.
Features & Accessories
- T-Slotted Moving and Bed Platens
Item Specifications for DCM-3933
| US | Metric | |
| Model: | GFTP-12 | GFTP-12 |
| Pressing Tonnage: | 12 tons | 10 tons |
| Number of Guide Posts: | 2 | 2 |
| Guide Post Diameter: | 2.5 inches | 63.5 mm |
| Daylight: | 18 inches | 457 mm |
| Stroke: | 12 inches | 304 mm |
| Shut Height: | 6 inches | 152 mm |
| Bed Size (Left to Right by Front to Back): | 22 x 17 inches | 558 x 431 mm |
| Cut out Size in Bed: | 8.5 x 11 Inches | 21.5 x 279 mm |
| Approximate Footprint (L/R x F/B): | 40 x 48 inches | 1016 x 1219 mm |
Description
Used, Hannifin Press Model GFTP-12 12 Ton Guided Platen Gap Frame Hydraulic Trim Press For_Sale, Features Include: T-Slotted Moving and Bed Platens, Relay Logic Control controls, second Hand, DCM-3933
