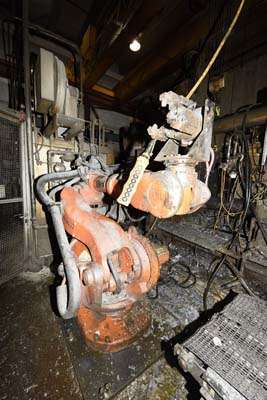

Used ABB Model: IRB 6600 175 Kilogram Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings
1 / 6| Status | Sold |
|---|---|
| Manufacturer | ABB |
| Model | IRB 6600 |
| Size | 175 Kilogram |
| Inventory Number | DCM-3858 |
ABB - IRB 6600 175 Kilogram Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings, S4C Controls
Questions? Call (847) 360-9170 and mention DCM-3858.
Features & Accessories
- Compact Arm Design
- Fast maneuverability
- Heavy Payload Capability
- Renowned ABB Parts and Service
Item Specifications for DCM-3858
| US | Metric | |
| Number of Axis: | 6 | 6 |
| Payload Capacity: | 385 pounds | 175 kg |
| Reach: | 100 inches | 2.55 meter |
| Axis 1 Rotation Motion: | +/- 180 Degrees | +/- 180 Degrees |
| Axis 2 Arm Motion: | +80 to -65 Degrees | +80 to -65 Degrees |
| Axis 3 Arm Motion: | +60 to -180 Degrees | +60 to -180 Degrees |
| Axis 4 Wrist Motion: | +/- 300 Degrees | +/- 300 Degrees |
| Axis 5 Bend Motion: | +/- 120 Degrees | +/- 120 Degrees |
| Axis 6 Rotation Motion: | +/- 300 Degrees | +/- 300 Degrees |
| Power Requirements: | 475/3/60 | 475/3/60 |
| Approximate Machine Weight: | 3,747 pounds | 1700 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Prince 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3797
- Sold – Metal Mechanics 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-3835
- Sold – Rimrock 305 Ladle with Epic Controller DCM-3856
- Sold – Rimrock 410 Servo-Drive Reciprocator, 80 inch Stroke with Epic Controller DCM-3857
- Sold – Rimrock 30 x 216 inch mesh belt type indexing conveyor DCM-3878
- Sold – MPH 500 Pound Per Hour Melt Capacity Reverberatory Type Wet Bath Stationary Aluminum Melting and Holding Furnace DCM-3887
Description
Used, ABB Model IRB 6600 175 Kilogram Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings For_Sale, Features Include: Compact Arm Design, Fast maneuverability, Heavy Payload Capability, Renowned ABB Parts and Service, S4C controls, second Hand, DCM-3858
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
