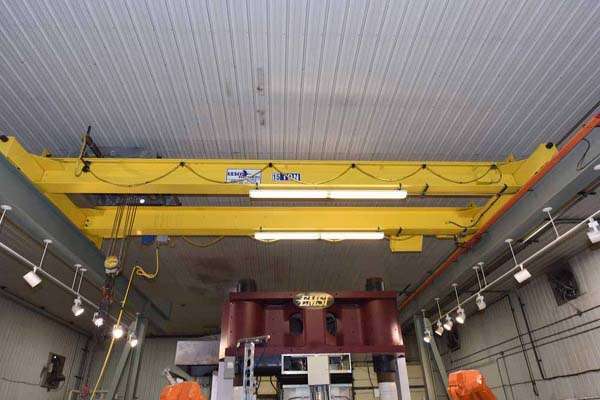

Used Uesco Crane Model: 15 Ton DG-TR-DM 15 Ton Free Standing, Top Running, Double Girder Overhead Bridge Crane
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Uesco Crane |
| Model | 15 Ton DG-TR-DM |
| Size | 15 Ton |
| Inventory Number | DCM-3829 |
Uesco Crane - 15 Ton DG-TR-DM 15 Ton Free Standing, Top Running, Double Girder Overhead Bridge Crane, Pushbutton Pendant Controls
View Available Building Cranes
Questions? Call (847) 360-9170 and mention DCM-3829.
Features & Accessories
- New in 2004 - Very Little Use - For Drawing Click the Hyperlink in the "PDF" section below
- Free Standing
- Top Running, Double Girder Design with Dual Drive Motors
- Low-Profile Design - Minimizes Building Height Reqquirments
- Two Speed in All Directions - Powered by Inverters
- Purchase Additional Runway Length As Necessary from Manufacturer
- Bolted Construction for Easy Removal and Erection
Item Specifications for DCM-3829
| US | Metric | |
| Crane Design: | Free Standing, Top Running, Double Girder | Free Standing, Top Running, Double Girder |
| Rated Lifting Capacity: | 15 Ton | 13.6 metric ton |
| Maximum Height Under Hook (available lift) | 16'-7 | 5.054 meters |
| Building Height Required: | 19'-4 | 5.893 meters |
| Crane Span: | 25' | 7.620 meters |
| Hoist: | Detroit D30T23-15M60 | Detroit D30T23-15M60 |
| Hoist Speed/Power (inverter): | 2 speed, 15 feet per minute - 15 HP | 2 speed, 4.57 meters per minute - 11 kw |
| Trolley Speed/Power (inverter): | 2 speed, 60 feet per minute - .75 HP | 2 speed, 18.28 meters per minute - 5.5 kw |
| Bridge Speed/Power (inverter): | 2 speed, 80 feet per minute - 1.5 HP x 2 | 2 speed, 24.38 meters per minute - 1.1 KW x 2 |
| Runway travel: | 37'-1 | 11.3 meters |
| Control: | Pushbutton, suspended from separate track | Pushbutton, suspended from separate track |
| Power Requirements: | 480/3/60 fused at 35 amps | 480/3/60 fused at 35 amps |
Documents
- Uesco Crane DrawingsPDF · 276 KB
Description
Used, Uesco Crane Model 15 Ton DG-TR-DM 15 Ton Free Standing, Top Running, Double Girder Overhead Bridge Crane For_Sale, Features Include: Free Standing, Top Running, Double Girder Design with Dual Drive Motors, Low-Profile Design - Minimizes Building Height Reqquirments, Two Speed in All Directions - Powered by Inverters, Purchase Additional Runway Length As Necessary from Manufacturer, Bolted Construction for Easy Removal and Erection, Pushbutton Pendant controls, second Hand, DCM-3829
