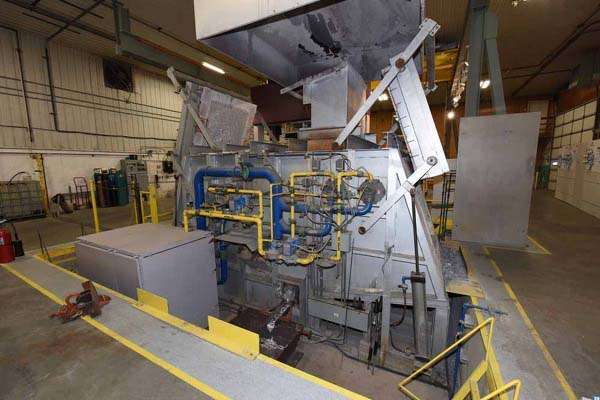

Used Gasmac Model: GDH-2500 2500 Pounds/Hour Dry Hearth Type Natural Gas Fired Stationary Aluminum Melting and Holding Furnace
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Gasmac |
| Model | GDH-2500 |
| Size | 2500 Pounds/Hour |
| Inventory Number | DCM-3815 |
Gasmac - GDH-2500 2500 Pounds/Hour Dry Hearth Type Natural Gas Fired Stationary Aluminum Melting and Holding Furnace, Honeywell Digital Controls
View Available Aluminum Melting Furnaces
Questions? Call (847) 360-9170 and mention DCM-3815.
Features & Accessories
- Dry Hearth Primary Melting Area with Charge Door for Ingots, Sows and Scrap
- Equipped with Side Well for an Auxiliary Metal Pump
- Equipped with Bottom Tap-Out
- High Melt Rate to Bath Size Ratio
Item Specifications for DCM-3815
| US | Metric | |
| Melting Rate: | 2,500 pounds/hour | 1,136 Kg/Hour |
| Bath Capacity: | 10,000 pounds | 4,545 Kg |
| Fuel Type: | Natural Gas | Natural Gas |
| Furnace Design: | Reverberatory | Reverberatory |
| Primary Charge Well Type: | Dry Hearth | Dry Hearth |
| Number of Burners: | 3 (two in dry hearth one in bath area) | 3 (two in dry hearth one in bath area) |
| Burner Location & Type: | Side Wall Mounted | Side Wall Mounted |
| Bottom Tap: | Yes | Yes |
| Total BTU: | 6,000,000 | 6,000,000 |
| Approximate Dimensions (L x W x H): | 221 x 143 x 175 inches | 5,614 x 3,632 x 4,445 mm |
Description
Used, Gasmac Model GDH-2500 2500 Pounds/Hour Dry Hearth Type Natural Gas Fired Stationary Aluminum Melting and Holding Furnace For_Sale, Features Include: Dry Hearth Primary Melting Area with Charge Door for Ingots, Sows and Scrap, Equipped with Side Well for an Auxiliary Metal Pump, Equipped with Bottom Tap-Out, High Melt Rate to Bath Size Ratio, Honeywell Digital controls, second Hand, DCM-3815
