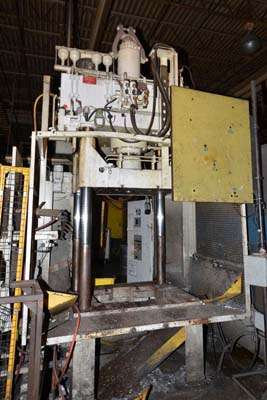

Used Reis Trim Press Model: SEP 10-65 D111 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 13| Status | Sold |
|---|---|
| Manufacturer | Reis Trim Press |
| Model | SEP 10-65 D111 |
| Size | 65 Metric Ton |
| Inventory Number | DCM-3754 |
Reis Trim Press - SEP 10-65 D111 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley Compac Logix Controls
Questions? Call (847) 360-9170 and mention DCM-3754.
Features & Accessories
- Air Safety Ratchet
- T-Slotted Moving and Bed Platens
- Hydraulic Parts Ejection
- Two (2) Auxiliary Side Core Circuits
- Top Mounted Hydraulics
- Factory Designed to be a Three Column Trim Press - Dramatically Eases Robotic Loading and Unloading of the Press
Item Specifications for DCM-3754
| US | Metric | |
| Pressing Tonnage: | 71.6 Tons | 65 Metric Tons |
| Number of Columns: | 3 | 3 |
| Column Diameter: | 5 inches | 127 mm |
| Daylight: | 36 inches | 914 mm |
| Stroke: | 24 inches | 609 mm |
| Shut Height: | 12 inches | 305 mm |
| Clearance between Tie Bars (Left to Right): | 39 inches | 991 mm |
| Clearance between Tie Bars (Front to Back): | 28 inches | 711 mm |
| Bed Size (Left to Right by Front to Back): | 53 x 43 inches | 1346 x 1092 mm |
| Cut out Size in Bed: (L/R x F/B): | 787 x 584 mm | 31 x 23 inches |
| Overall Size (L x w x H): | 7'6 x 5 x 14'7 | 2316x 1524 x 4572 mm |
| Estimated Machine Weight: | 14,300 lbs | 6,500 kg |
Description
Used, Reis Trim Press Model SEP 10-65 D111 65 Metric Ton Three Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, T-Slotted Moving and Bed Platens, Hydraulic Parts Ejection, Two (2) Auxiliary Side Core Circuits, Top Mounted Hydraulics, Factory Designed to be a Three Column Trim Press - Dramatically Eases Robotic Loading and Unloading of the Press, Allen Bradley Compac Logix controls, second Hand, DCM-3754
