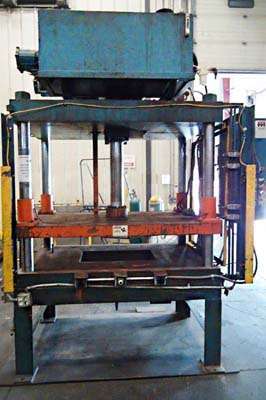

Used Metal Mechanics Model: DCT-75 75 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | DCT-75 |
| Size | 75 Ton |
| Inventory Number | DCM-3745 |
Metal Mechanics - DCT-75 75 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley Programmable Solid State Controls Controls
Questions? Call (847) 360-9170 and mention DCM-3745.
Features & Accessories
- New in 2006 - BIG CLEARANCES!
- Air Safety Ratchet
- One (1) Auxiliary Hydraulic Side Core/Punch Circuits
- Drilled & Tapped Moving and Bed Platens
- Dual Soft-Touch Proximity Palm Button Operation
- Allen Bradley Programmable Solid State Control
- Press Includes Metal Mechanics Hydraulic Powered Parts Unloader featuring adjustable shuttle-table height
Item Specifications for DCM-3745
| US | Metric | |
| Model: | DCT-75 | DCT-75 |
| Pressing Tonnage: | 75 tons | 36 Tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 3.5 inches | 88.9 mm |
| Daylight: | 36 inches | 914 mm |
| Stroke: | 24 inches | 609 mm |
| Shut Height: | 12 inches | 304 mm |
| Clearance between Tie Bars (Left to Right): | 60 inches | 1,524 mm |
| Clearance between Tie Bars (Front to Back): | 32 inches | 812 mm |
| Bed Size (Left to Right by Front to Back): | 71 x 49 inches | 1803 x 1244 mm |
| Cut out Size in Bed: (L/R x F/B): | 30 x 17 inches | 762 x 431 mm |
| Overall Dimensions (width x depth x height): | 97 x 52 x 130 Inches | 2.463 x 1.320 x 3.302 Meters |
Description
Used, Metal Mechanics Model DCT-75 75 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, One (1) Auxiliary Hydraulic Side Core/Punch Circuits, Drilled & Tapped Moving and Bed Platens, Dual Soft-Touch Proximity Palm Button Operation, Allen Bradley Programmable Solid State Control, Press Includes Metal Mechanics Hydraulic Powered Parts Unloader featuring adjustable shuttle-table height, Allen Bradley Programmable Solid State Controls controls, second Hand, DCM-3745
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
