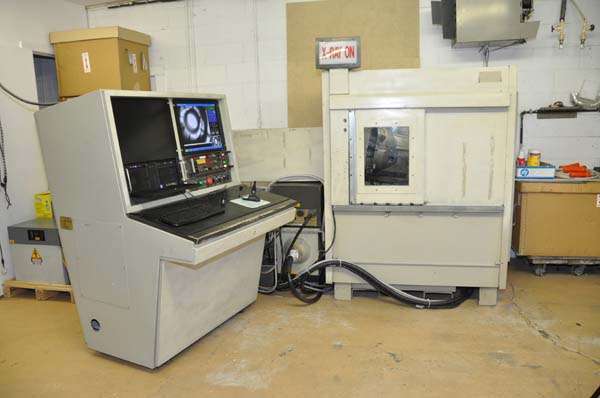

Used Philips Model: MCRS-2000 Real Time Industrial X-ray
1 / 16| Status | Sold |
|---|---|
| Manufacturer | Philips |
| Model | MCRS-2000 |
| Inventory Number | DCM-3729 |
Philips - MCRS-2000 Real Time Industrial X-ray, Controls
Questions? Call (847) 360-9170 and mention DCM-3729.
Features & Accessories
- Converted Manipulator operations to 2 joysticks and 1 switch for tilt.
- Computer Image Processor, CPU, 20 inches LCD Monitor, Key Board, Mouse and Interconnecting Cables.
- Software features includes Frame averaging, storing images on CD or hard drive, measuring of porosity, zoom features, and various other processing functions in order to make porosity or voids more pronounced.
Item Specifications for DCM-3729
| US | Metric | |
| Inspection Envelope (top of Cabinet to center of Image Intensifier - x-ray beam) | 23 inches | 584.2 mm |
| Inspection Envelope (center of Image Intensifier to floor of Cabinet) | 37 inches | 939.8 mm |
| Maximum weight of part to be inspected: | 20 pounds | 9 kg |
| Manipulator Travel (up/down): | 20 inches | 508 mm |
| Manipulator Travel (left/right): | 16 inches | 406.4 mm |
| Manipulator Travel Image tube to x-ray tube (in/out): | 19 inches | 482.6 mm |
| Focal Spot (according to Intl. Standard EN12543) small: | 1.0 mm | 1.0 mm |
| Focal Spot (according to Intl. Standard EN12543) large: | 2.0 mm | 2.0 mm |
| X-Ray Tube: | MXR 160/20 (DOM 08/05) | MXR 160/20 (DOM 08/05) |
| X-Ray Cabinet Dimension (L x W x H): | 85 x 39 x 77 inches | 2159 x 990.6 x 1955.8 mm |
| Operator's Console Dimension (L x W x H): | 43 x 46 x 60 inches | 1092.2 x 1168.4 x 1524 mm |
| Part's Loading Door Dimension (L x H): | 17 x 23 inches | 431.8 x 584.2 mm |
Video
Description
Used, Philips Model MCRS-2000 Real Time Industrial X-ray For_Sale, Features Include: Converted Manipulator operations to 2 joysticks and 1 switch for tilt., Computer Image Processor, CPU, 20 inches LCD Monitor, Key Board, Mouse and Interconnecting Cables., Software features includes Frame averaging, storing images on CD or hard drive, measuring of porosity, zoom features, and various other processing functions in order to make porosity or voids more pronounced., controls, second Hand, DCM-3729
