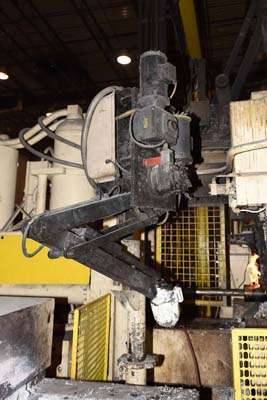

Used Rimrock Model: 310-60 inch & 305 70 inch Standard Duty 310-60/305-70 inch Combination Automatic Ladle & Reciprocating Die Sprayer Package
1 / 4| Status | Sold |
|---|---|
| Manufacturer | Rimrock |
| Model | 310-60 inch & 305 70 inch Standard Duty |
| Size | 310-60/305-70 inch |
| Inventory Number | DCM-3710 |
Rimrock - 310-60 inch & 305 70 inch Standard Duty 310-60/305-70 inch Combination Automatic Ladle & Reciprocating Die Sprayer Package, Weinview PLC with Color HMI Controls
View Available Combination Die Sprayer and Auto-Ladle
Questions? Call (847) 360-9170 and mention DCM-3710.
Features & Accessories
- Compact Size - Small footprint on floor
- Sprayer has A & B Spray Controls for Different Spray Dilutions
- Fully Programmable via remote Pendant Station
- Upgraded to Weinview PLC controls with Color HMI
- Color Touch Screen HMI
- Ladle Can Work on either operator or helper side of die cast machine - interchangeable
Item Specifications for DCM-3710
| US | Metric | |
| Die Sprayer Vertical Stroke: | 60 inches | 1524 mm |
| Die Sprayer Horizontal Stroke: | 22 inches | 558 mm |
| Die Sprayer Horizontal Adjustment: | 10-1/2 inches | 266 mm |
| Die Sprayer Overall Height: | 62 inches | 1574 mm |
| Die Spray Control: | Yes, A & B | Yes, A & B |
| Ladler Stroke: | 40 to 70 Inches | 1016 to 1778 mm |
| Ladle Pour Capacity: | 50 pounds maximum | 22.7 kg maximum |
| Ladle Draw-down: | 17 inches maximum | 431 mm maximum |
| Ladler Cycle Speed: | Adjustable | Adjustable |
| Ladle Pour Contour: | Adjustable 3 speed - 3 positions | Adjustable 3 speed - 3 positions |
| Maximum tilt of Ladler unit: | +/- 6 degrees | +/- 6 degrees |
| Power Requirements: | 120/1/60 | 120/1/60 |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Prince Model 633 CCA Cold Chamber Aluminum Die Casting Machine DCM-3709
- Sold – MPH Holimesy Electric Powered Aluminum Holding Furnace with Dynarad EC-950 Power Supply & Control DCM-3712
- Sold – Custom Built Steel Mesh Conveyor with forced air cooling tunnel, 24 x 186 inches DCM-3713
- Sold – Die Cast Press 40 ton vertical four post trim press DCM-3714
Description
Used, Rimrock Model 310-60 inch & 305 70 inch Standard Duty 310-60/305-70 inch Combination Automatic Ladle & Reciprocating Die Sprayer Package For_Sale, Features Include: Compact Size - Small footprint on floor, Sprayer has A & B Spray Controls for Different Spray Dilutions, Fully Programmable via remote Pendant Station, Upgraded to Weinview PLC controls with Color HMI, Color Touch Screen HMI, Ladle Can Work on either operator or helper side of die cast machine - interchangeable, Weinview PLC with Color HMI controls, second Hand, DCM-3710
