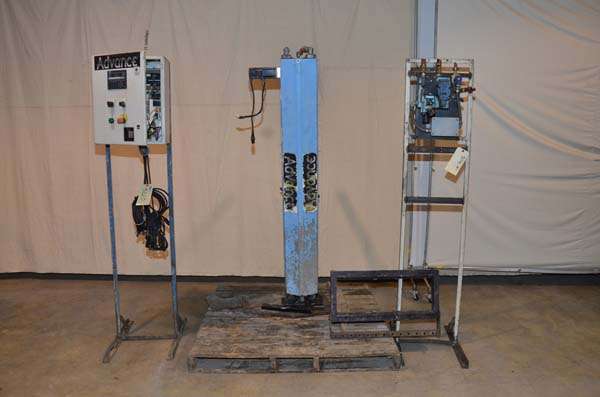

Used Advance Products Model: SRL 250 250 Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations

1 / 12

Status	Sold
Manufacturer	Advance Products
Model	SRL 250
Size	250
Inventory Number	DCM-3620

Advance Products - SRL 250 250 Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations, Mitsubishi FX1 s Controls

View Available Die Sprayers

See available Die Sprayers Print PDF

Questions? Call (847) 360-9170 and mention DCM-3620.

Features & Accessories

Mitsubishi FX1 s series programmable logic controller
Programs can have up to 20 different sprayer positions. Each position can spray lube, blow off the dies or both at once
Two axis of movement, horizontal and vertical
Travel speeds up to 72 inches per second

Item Specifications for DCM-3620

	US	Metric
Model:	SRL 250	SRL 250
Rated Maximum Speed:	72 inch/sec	1829 mm/sec
Number of Direction Change:	20	20
Valve Package:	10 x 8.75 x 15.5 inches	254 x 222.25 x 393.7 mm
Valve Package Weight:	40 lbs	18.14 kg
Air Flow:	50 cubic feet per minute	50 cubic feet per minute
Air Pressure:	50 - 90 psi	50 - 90 psi
Air Connection (NPT):	.75 inches	19.05 mm
Lube Pressure:	40 - 80 psi	40 - 80 psi
Lube Connection (NPT):	.375 inches	9.525 mm

Description

Used, Advance Products Model SRL 250 250 Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations For_Sale, Features Include: Mitsubishi FX1 s series programmable logic controller, Programs can have up to 20 different sprayer positions. Each position can spray lube, blow off the dies or both at once, Two axis of movement, horizontal and vertical, Travel speeds up to 72 inches per second, Mitsubishi FX1 s controls, second Hand, DCM-3620
