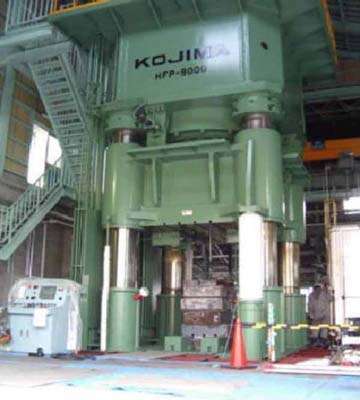

Used Kojima Model: HFP-9000 9000 Ton Four Column (Post) Vertical Hydraulic Forging Press

StatusSold
ManufacturerKojima
ModelHFP-9000
Size9000 Ton
Inventory NumberDCM-3589

Kojima - HFP-9000 9000 Ton Four Column (Post) Vertical Hydraulic Forging Press, Controls

View Available Trim Presses

Questions? Call (847) 360-9170 and mention DCM-3589.

Features & Accessories

  • Never Used, Like New - Designed to produce Forged Aluminum and Alloy Wheels
  • Pressing Speed: 3 to 9.5 mm/sec
  • Descending speed: 100-160mm/sec
  • T-Slotted Bed and Moving Platen

Item Specifications for DCM-3589

USMetric
Model:HFP-9000HFP-9000
Pressing Tonnage:9,000 ton8.16 ton
Number of Columns:44
Daylight:106.29 inches2700 mm
Stroke:51.18 inches1300 mm
Shut Height:55.11 inches1400 mm
Bed Size (Left to Right by Front to Back):70.86 x 98.42 inches1800 x 2500 mm

Description

Used, Kojima Model HFP-9000 9000 Ton Four Column (Post) Vertical Hydraulic Forging Press For_Sale, Features Include: Pressing Speed: 3 to 9.5 mm/sec, Descending speed: 100-160mm/sec, T-Slotted Bed and Moving Platen, controls, second Hand, DCM-3589

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
