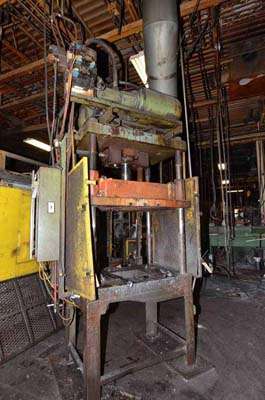

Used Metal Mechanics Model: 35-T 35 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | 35-T |
| Size | 35 Ton |
| Inventory Number | DCM-3558 |
Metal Mechanics - 35-T 35 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, PLC Controls
Questions? Call (847) 360-9170 and mention DCM-3558.
Features & Accessories
- T-Slotted Bed
- T-Slotted Moving Platen
- Top Mounted Hydraulics
- Hydraulic Ejector Plate
- Air Safety Ratchet
- Dual Pull Out Bars
Item Specifications for DCM-3558
| US | Metric | |
| Model: | 35-T | 35-T |
| Pressing Tonnage: | 35 tons | 31.75 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 3 inches | 76 mm |
| Daylight: | 39 inches | 991 mm |
| Stroke: | 18 inches | 457 mm |
| Shut Height: | 21 inches | 533 mm |
| Clearance between Tie Bars (Left to Right): | 42.5 inches | 1080 mm |
| Clearance between Tie Bars (Front to Back): | 26 inches | 660 mm |
| Bed Size (Left to Right by Front to Back): | 51 x 35 inches | 1294 x 889 mm |
| Cut out Size in Bed: (L/R x F/B) | 18 x 12 inches | 457 x 305 mm |
| Overall Size: | 72 x 55 x 156 inches | 1829 x 1397 x 3962 mm |
Description
Used, Metal Mechanics Model 35-T 35 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: T-Slotted Bed, T-Slotted Moving Platen, Top Mounted Hydraulics, Hydraulic Ejector Plate, Air Safety Ratchet, Dual Pull Out Bars, PLC controls, second Hand, DCM-3558
