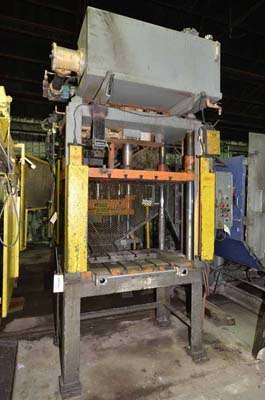

Used Metal Mechanics Model: 35-T 35 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press

StatusSold
ManufacturerMetal Mechanics
Model35-T
Size35 Ton
Inventory NumberDCM-3557

Metal Mechanics - 35-T 35 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley MicroLogix 1000 Controls

View Available Trim Presses

Questions? Call (847) 360-9170 and mention DCM-3557.

Features & Accessories

  • T-Slotted Bed and T-Slotted Moving Platen
  • Light Curtains and Top Mounted Hydraulics
  • Hydraulic Ejector Plate
  • Air Safety Ratchet
  • Dual-Palm Buttons
  • One (1) Auxiliary Hydraulic Side Core Circuit

Item Specifications for DCM-3557

USMetric
Model:35-T35-T
Pressing Tonnage:35 tons31.75 tons
Number of Columns:44
Column Diameter:3 inches76 mm
Daylight:40 inches1016 mm
Stroke:24 inches610 mm
Shut Height:16 inches406 mm
Clearance between Tie Bars (Left to Right):42.5 inches1080 mm
Clearance between Tie Bars (Front to Back):22 inches559 mm
Bed Size (Left to Right by Front to Back):52 x 30 inches1321 x 762 mm
Cut out Size in Bed: (L/R x F/B)32 x 10 inches813 x 254 mm
Overall Size:74 x 54 x 126 inches1880 x 1372 x 3200 mm

Description

Used, Metal Mechanics Model 35-T 35 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: T-Slotted Bed and T-Slotted Moving Platen, Light Curtains and Top Mounted Hydraulics, Hydraulic Ejector Plate, Air Safety Ratchet, Dual-Palm Buttons, One (1) Auxiliary Hydraulic Side Core Circuit, Allen Bradley MicroLogix 1000 controls, second Hand, DCM-3557

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
