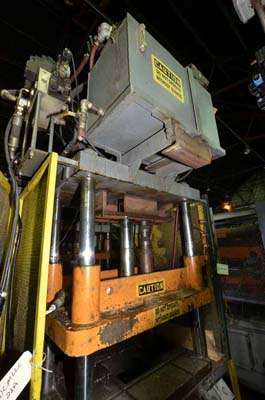

Used Southern Engineering Model: 35-T 35 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press

StatusSold
ManufacturerSouthern Engineering
Model35-T
Size35 Ton
Inventory NumberDCM-3556

Southern Engineering - 35-T 35 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, GE Fanuc Versamax Controls

View Available Trim Presses

Questions? Call (847) 360-9170 and mention DCM-3556.

Features & Accessories

  • Air Safety Ratchet
  • Mechanical Ejector Plate
  • Top Mounted Hydraulics
  • Drill & Tapped Moving Platen
  • T-Slotted Bed
  • Dual Palm Button Operation

Item Specifications for DCM-3556

USMetric
Model:35-T35-T
Pressing Tonnage:35 tons31.75 tons
Number of Columns:44
Column Diameter:3 inches76 mm
Daylight:29 inches736 mm
Stroke:18 inches457 mm
Shut Height:11 inches279 mm
Clearance between Tie Bars (Left to Right):32.5 inches787 mm
Clearance between Tie Bars (Front to Back):16.5 inches419 mm
Bed Size (Left to Right by Front to Back):43 x 27 inches1092 x 686 mm
Cut out Size in Bed: (L/R x F/B)12 x 10 inches305 x 254 mm
Overall Size:64 x 54 x128 inches1626 x 1372 x 3251 mm

Description

Used, Southern Engineering Model 35-T 35 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, Mechanical Ejector Plate, Top Mounted Hydraulics, Drill & Tapped Moving Platen, T-Slotted Bed, Dual Palm Button Operation, GE Fanuc Versamax controls, second Hand, DCM-3556
