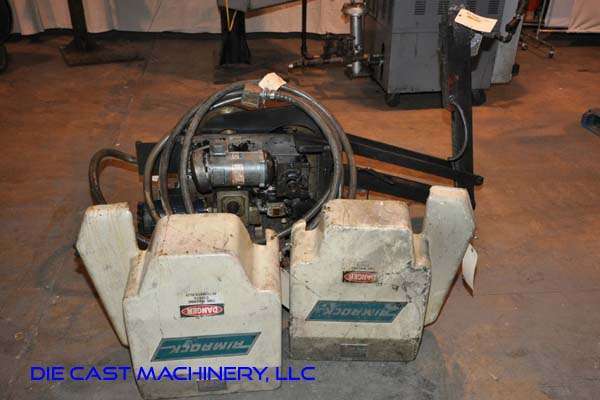

Used Rimrock Model: 195/305 195-60/305-70 Inch Combination Automatic Ladle and Extractor with Spray Package
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Rimrock |
| Model | 195/305 |
| Size | 195-60/305-70 Inch |
| Inventory Number | DCM-3554 |
Rimrock - 195/305 195-60/305-70 Inch Combination Automatic Ladle and Extractor with Spray Package, Triangle Controls
View Available Combination Sprayer-Extractor and Automatic-Ladle
Questions? Call (847) 360-9170 and mention DCM-3554.
Features & Accessories
- Extractor Equipped with Rimrock Die Spray Package
- Rimrock 305-70 Automatic Ladle - designed to work on Operator or Helper-Side of Die Cast Machine
- Extractor is an Operator Side unit with counter-clockwise rotation with wrist lay-over (part lay-over) and die spray package
- Rimrock Triangle Controls with Remote Touch Pad Pendants
Item Specifications for DCM-3554
| US | Metric | |
| Ladle Stroke (adjustable): | 40 to 70 Inches | 1016 to 1778 mm |
| Ladle Pour Capacity (Aluminum): | 50 pounds maximum | 22.7 kg maximum |
| Metal Draw-down (ladle): | 17 inches maximum | 431 mm maximum |
| Ladle Cycle Speed: | Adjustable | Adjustable |
| Ladle Pour Contour: | Adjustable 3 speed & 3 positions | Adjustable 3 speed & 3 positions |
| Maximum Ladle tilt: | +/- 6 degrees | +/- 6 degrees |
| Extractor Style: | Operator Side | Operator Side |
| Extractor Base Rotation | 90 degree counter-clockwise | 90 degree counter-clockwise |
| Extractor Stroke | 60 inches | 1524 mm |
| Gripper Stroke/Part Layover Feature: | 5 inches/Yes | 127 mm/Yes |
| Equipped with Die Spray Package: | Yes | Yes |
Description
Used, Rimrock Model 195/305 195-60/305-70 Inch Combination Automatic Ladle and Extractor with Spray Package For_Sale, Features Include: Rimrock 305-70 Automatic Ladle - designed to work on Operator or Helper-Side of Die Cast Machine, Extractor is an Operator Side unit with counter-clockwise rotation with wrist lay-over (part lay-over) and die spray package, Rimrock Triangle Controls with Remote Touch Pad Pendants, Triangle controls, second Hand, DCM-3554
