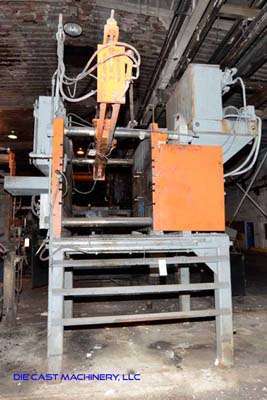

Used Superior Trim Press Model: 50 50 Ton Four Column (post) Horizontal Hydraulic Die Cast Trim Press
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Superior Trim Press |
| Model | 50 |
| Size | 50 Ton |
| Inventory Number | DCM-3440 |
Superior Trim Press - 50 50 Ton Four Column (post) Horizontal Hydraulic Die Cast Trim Press, Controls
View Available Horizontal Trim Presses
Questions? Call (847) 360-9170 and mention DCM-3440.
Features & Accessories
- Fixed Ejector Plate
- Automatic Lubrication
- T-Slotted Moving and Bed Platens
Item Specifications for DCM-3440
| US | Metric | |
| Pressing Tonnage: | 50 tons | 45.36 tons |
| Number of Columns: | 4 | 4 |
| Daylight: | 40 inches | 1016 mm |
| Stroke: | 24 inches | 609.6 mm |
| Shut Height: | 16 inches | 406.4 mm |
| Clearance between Tie bars (Vertical): | 38 inches | 965.2 mm |
| Clearance between Tie bars (Horizontal): | 48 inches | 1219.2 mm |
| Bed Size (Vertical x Horizontal): | 50 x 60 inches | 1270 x 1524 mm |
Description
Used, Superior Trim Press Model 50 50 Ton Four Column (post) Horizontal Hydraulic Die Cast Trim Press For_Sale, Features Include: Fixed Ejector Plate, Automatic Lubrication, T-Slotted Moving and Bed Platens, controls, second Hand, DCM-3440
