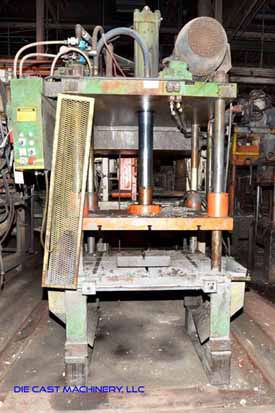

Used Die Cast Press Trim Press Model: 30 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Die Cast Press Trim Press |
| Size | 30 Ton |
| Inventory Number | DCM-3424 |
Die Cast Press Trim Press - 30 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Controls
View Available Vertical Trim Presses
Questions? Call (847) 360-9170 and mention DCM-3424.
Features & Accessories
- Hydraulic Ejector Plate
- Automatic Lubrication
- T-Slotted Moving and Bed Platens
- Mechanical Ejector Bars
Item Specifications for DCM-3424
| US | Metric | |
| Pressing Tonnage: | 30 tons | 27.22 tons |
| Number of Columns: | 4 | 4 |
| Daylight: | 39 inches | 990.6 mm |
| Stroke: | 26 inches | 660.4 mm |
| Shut Height: | 13 inches | 330.2 mm |
| Clearance between Tie bars (Left to Right): | 30 inches | 762 mm |
| Clearance between Tie bars (Front to Back): | 27 inches | 685.8 mm |
| Bed Size (Left to Right by Front to Back): | 48 x 36.5 inches | 1219.2 x 977.9 mm |
| Cut out in Bed (L/R x F/B): | 20 x 15 inches | 508 x 381 mm |
Description
Used, Die Cast Press Trim Press Model 30 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Hydraulic Ejector Plate, Automatic Lubrication, T-Slotted Moving and Bed Platens, Mechanical Ejector Bars, controls, second Hand, DCM-3424
