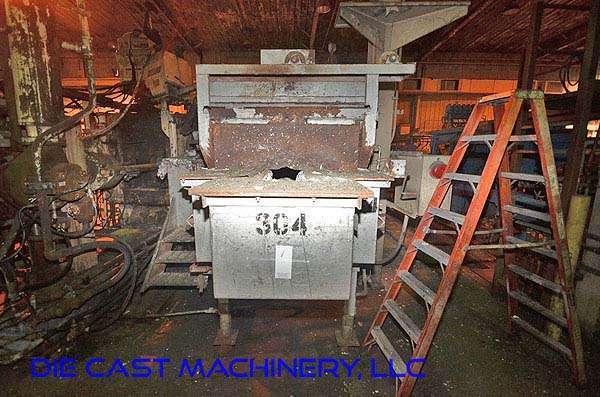

Used RDC Model: RDC-4000 4000 pounds Low Energy High Efficiency Natural Gas Heated Aluminum Holding Furnace
1 / 4| Status | Sold |
|---|---|
| Manufacturer | RDC |
| Model | RDC-4000 |
| Size | 4000 pounds |
| Inventory Number | DCM-3379 |
RDC - RDC-4000 4000 pounds Low Energy High Efficiency Natural Gas Heated Aluminum Holding Furnace, Honeywell Controls
View Available Aluminum Holding Furnaces
Questions? Call (847) 360-9170 and mention DCM-3379.
Features & Accessories
- Honeywell Digital Temperature Controllers
- Equipped with North American Combustion Equipment
- PLC furnace controls
- Adjust height legs for easy use with different size die casting machines or other foundry applications
- Dual Fuel Capable - Natural Gas or LPG
Item Specifications for DCM-3379
| US | Metric | |
| Bath Capacity by Weight (approximate): | 4,000 Pounds | 1,818 kg |
| Bath Size (approximate): | 72 x 34 x 14 inches | 1828 x 836 x 355 mm |
| Dip-Out Well Size: | 22 x 22 inches | 558 x 558 mm |
| Type of fuel: | Natural Gas or LPG | Natural Gas or LPG |
| Height (floor to dip-out well - adjustable legs): | 50 - 65 inches | 1270 - 1651 mm |
| Burner Location: | Roof Mounted | Roof Mounted |
| Main Furnace Dimensions: | 55 x 108 inches | 1397 x 2743 mm |
| Overall Footprint: | 108 x 108 inches | 2743 x 2743 mm |
| Overall Height (approximate): | 95 inches | 2413 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Lester Model: HP-1200X-SF 1200 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3378
- Sold – Rimrock Model: 305 305-70 Inch Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations DCM-3380
- Sold – Rimrock Model: 410 60 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations DCM-3381
- Sold – ABB Model: IRB 6400 120 Kg Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-3382
Description
Used, RDC Model RDC-4000 4000 pounds Low Energy High Efficiency Natural Gas Heated Aluminum Holding Furnace For_Sale, Features Include: Honeywell Digital Temperature Controllers, Equipped with North American Combustion Equipment, PLC furnace controls, Adjust height legs for easy use with different size die casting machines or other foundry applications, Dual Fuel Capable - Natural Gas or LPG, Honeywell controls, second Hand, DCM-3379
