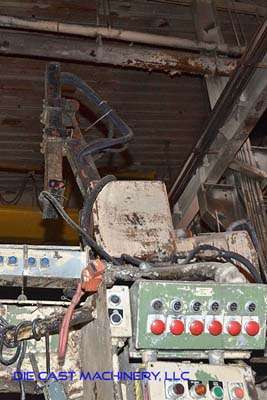

Used Advance Products Model: Gemini 155 40 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations
1 / 3| Status | Sold |
|---|---|
| Manufacturer | Advance Products |
| Model | Gemini 155 |
| Size | 40 Inch |
| Inventory Number | DCM-3346 |
Advance Products - Gemini 155 40 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations, Toshiba Controls
Questions? Call (847) 360-9170 and mention DCM-3346.
Features & Accessories
- Memory holds 50 programs with 20 start/stop set points each
- Touch Pad HMI
- Positioning Accuracy of 0.02 inch/0.005 mm
Item Specifications for DCM-3346
| US | Metric | |
| Vertical Stroke: | 40 inches | 1016 mm |
| Horizontal Base Adjustment (die thickness): | 13 inches | 330 mm |
| Machine Height: | 48 inches | 1220 mm |
| Machine Width: | 35 inches | 890 mm |
| Maximum Travel Speed: | 40 IPS | 1.0 MPS |
| Programmable Travel Speed: | .02 - 40 IPS | .005 - 1.0 MPS |
| Maximum Spread Head Weight: | 75 pounds | 34 Kg |
| Power Requirements: | 120/1/60 | 120/1/60 |
| Motor Drive: | Servo drive | Servo drive |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Lester Model: HP-900X-SF 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine DCM-3343
- Sold – RDC Model: RDC-4000 4000 Pounds Low Energy High Efficiency Natural Gas Heated Aluminum Holding Furnace DCM-3344
- Sold – Rimrock Model: 305 305-70 Inch Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations DCM-3345
Description
Used, Advance Products Model Gemini 155 40 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations For_Sale, Features Include: Memory holds 50 programs with 20 start/stop set points each, Touch Pad HMI, Positioning Accuracy of 0.02 inch/0.005 mm, Toshiba controls, second Hand, DCM-3346
