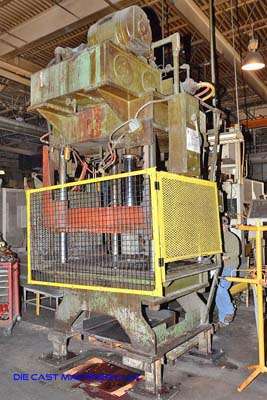

Used Hannifin Press Model: 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Hannifin Press |
| Size | 50 Ton |
| Inventory Number | DCM-3192 |
Hannifin Press - 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley MicroLogix Controls
Questions? Call (847) 360-9170 and mention DCM-3192.
Features & Accessories
- Top Mounted Hydraulics
- Drill & Tapped Moving and Bed Platens
- Mechanical Ejector Bars
- Dual Balm Buttons
Item Specifications for DCM-3192
| US | Metric | |
| Pressing Tonnage: | 50 tons | 45.36 metric tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 3.5 inches | 88.9 mm |
| Daylight: | 36 inches | 914 mm |
| Stroke: | 24 inches | 609 mm |
| Shut Height: | 12 inches | 305 mm |
| Clearance between Tie Bars (Left to Right): | 49 inches | 1244.6 mm |
| Clearance between Tie Bars (Front to Back): | 36 inches | 914.4 mm |
| Bed Size (Left to Right by Front to Back): | 60 x 48 inches | 1524 x 1219.2 mm |
| Cut out Size in Bed: (L/R x F/B): | 12 x 12 inches | 304.8 x 304.8 mm |
| Overall Size (L x w x H): | 7 x 6'6 x 13'9 feet | 2134x 2012 x 4237 mm |
| Estimate Machine Weight: | 9,920 lbs | 4,500 kg |
Description
Used, Hannifin Press Model 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Top Mounted Hydraulics, Drill & Tapped Moving and Bed Platens, Mechanical Ejector Bars, Dual Balm Buttons, Allen Bradley MicroLogix controls, second Hand, DCM-3192
