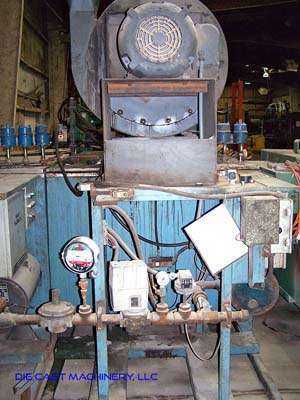

Used Samsco Model: 800 Waste Water Evaporator
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Samsco |
| Size | 800 |
| Inventory Number | DCM-3022 |
Samsco - 800 Waste Water Evaporator, Controls
View Available Plant Support Items
Questions? Call (847) 360-9170 and mention DCM-3022.
Item Specifications for DCM-3022
| US | Metric | |
| Heat Input Max.: | 1,500,000 Btu | 1,500,000 Btu |
| Evaporation Rate (Auto): | 126 gal/hr | 476.9 liter/hr |
| Evaporation Rate (Batch): | 145 gal/hr | 548.8 liter/hr |
| Heat Exchanger: | Schedule 10, 6 inch (Nominal Diameter) | Schedule 10, 154 mm (Nominal Diameter) |
| Vent Stack: | 10 inch Diameter (single wall, galvanized typical) | 254 mm Diameter (single wall, galvanized typical) |
| Tank Capacity: | 537 gallons | 2,032 liters |
| Tank Insulation: | 1 inch thick, 250 degrees Fahrenheit | 25.4 mm thick, 121 degrees Celsius |
| Tank Design: | Sloped Bottom | Sloped Bottom |
| Inlet Port: | 1-1/2 inch NPTF with fill standpipe | 1-1/2 inch NPTF with fill standpipe |
| Clean-out Port: | 4 inch NPT Pipe | 4 inch NPT Pipe |
| Power Supply: | 230/460 VAC 57/29A 3-PH | 230/460 VAC 57/29A 3-PH |
| Weight: | 2,800 pounds | 1,270 Kg |
Video
Documents
Description
Used, Samsco Model 800 Waste Water Evaporator For_Sale, Features Include:, controls, second Hand, DCM-3022
