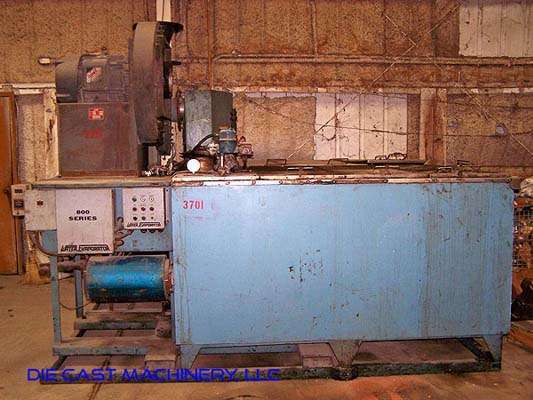

Used Samsco Model: 800 Waste Water Evaporator

StatusSold
ManufacturerSamsco
Size800
Inventory NumberDCM-3019

Samsco - 800 Waste Water Evaporator, Controls

View Available Plant Support Items

Questions? Call (847) 360-9170 and mention DCM-3019.

Item Specifications for DCM-3019

USMetric
Heat Input Max.:1,500,000 Btu1,500,000 Btu
Evaporation Rate (Auto):126 gal/hr476.9 liter/hr
Evaporation Rate (Batch):145 gal/hr548.8 liter/hr
Heat Exchanger:Schedule 10, 6 inch (Nominal Diameter)Schedule 10, 154 mm (Nominal Diameter)
Vent Stack:10 inch Diameter (single wall, galvanized typical)254 mm Diameter (single wall, galvanized typical)
Tank Capacity:537 gallons2,032 liters
Tank Insulation:1 inch thick, 250 degrees Fahrenheit25.4 mm thick, 121 degrees Celsius
Tank Design:Sloped BottomSloped Bottom
Inlet Port:1-1/2 inch NPTF with fill standpipe1-1/2 inch NPTF with fill standpipe
Clean-out Port:4 inch NPT Pipe4 inch NPT Pipe
Power Supply:230/460 VAC 57/29A 3-PH230/460 VAC 57/29A 3-PH
Weight:2,800 pounds1,270 Kg

Documents

Description

Used, Samsco Model 800 Waste Water Evaporator For_Sale, Features Include:, controls, second Hand, DCM-3019

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
