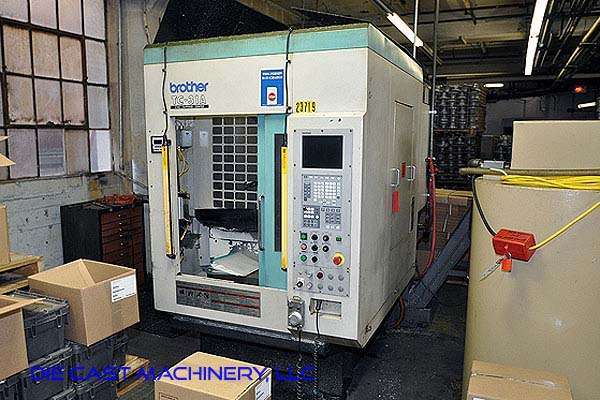

Used Brother Model: 31
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Brother |
| Size | 31 |
| Inventory Number | DCM-2895 |
Brother - 31 , Controls
Questions? Call (847) 360-9170 and mention DCM-2895.
Features & Accessories
- New In 2001
- Series CNC-A00 Control
- Tool Monitor
- Auxilary Hydraulic Power Pack
- Turbo Chip Outfeed Conveyor
- STI Minisafe MS4300 Series Safety Light Curtain
- Yukiwa Indexers (Available Separately - Subject To Sale)
Item Specifications for DCM-2895
| US | Metric | |
| X, Y, Z-Axis Travels: | 13.8, 9.8, 13.8 inch | 350, 250, 350 mm |
| Work Area / Table Size: | 19.7 x 10.6 inch | 500 x 270 mm |
| Maximum Load on Table (One Side): | 176 pounds | 80 kg |
| Spindle Speed: | 16,000 rpm | 16,000 rpm |
| Spindle Taper: | No. 30 | No. 30 |
| Tool Capacity: | 26 (+1) | 26 (+1) |
| Required Floor Space: | 50 x 119 x 88 inches | 1270 x 3016 x 2220 mm |
| Machine Weight: | 4630 pounds | 2100 kg |
Description
Used, Brother Model 31 For_Sale, Features Include: Series CNC-A00 Control, Tool Monitor, Auxilary Hydraulic Power Pack, Turbo Chip Outfeed Conveyor, STI Minisafe MS4300 Series Safety Light Curtain, Yukiwa Indexers (Available Separately - Subject To Sale), controls, second Hand, DCM-2895
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
