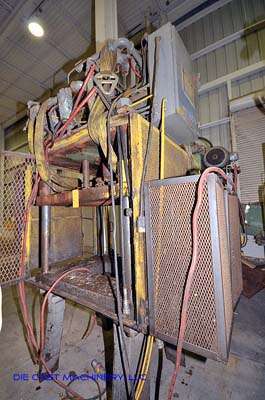

Used Southern Engineering Model: 50
1 / 2| Status | Sold |
|---|---|
| Manufacturer | Southern Engineering |
| Size | 50 |
| Inventory Number | DCM-2854 |
Southern Engineering - 50 , Controls
Questions? Call (847) 360-9170 and mention DCM-2854.
Features & Accessories
- T-Slotted Platens
Item Specifications for DCM-2854
| US | Metric | |
| Model: | 50 | 50 |
| Pressing Tonnage: | 50 ton | 45 tons |
| Number of Columns: | 4 | 4 |
| Daylight: | 36.5 inches | 927 mm |
| Stroke: | 15.5 inches | 393.7 mm |
| Shut Height: | 21 inches | 533.4 mm |
| Clearance between Tie Bars (Left to Right): | 42 inches | 1066.8 mm |
| Clearance between Tie Bars (Front to Back): | 30.25 inches | 768.35 mm |
| Bed Size (Left to Right by Front to Back): | 52 x 40 inches | 1320 x 1016 mm |
| Cut out Size in Bed: | 19.75 x 15 inches | 501.65 x 381 mm |
Description
Used, Southern Engineering Model 50 For_Sale, Features Include: T-Slotted Platens, controls, second Hand, DCM-2854
