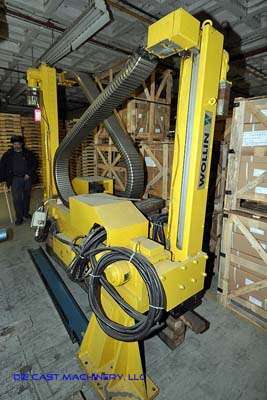

Used Wollin Model: PSM-336 1600 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerWollin
ModelPSM-336
Size1600 mm
Inventory NumberDCM-2507

Wollin - PSM-336 1600 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations, PC-1 Controls

View Available Die Sprayers

Questions? Call (847) 360-9170 and mention DCM-2507.

Features & Accessories

  • New 2004
  • Wollin PC 1 Controls
  • Absolute Positioning
  • Easily Programed via Teach Pendant Programing
  • Quick Set up times due to design

Item Specifications for DCM-2507

USMetric
Device Type:PSM 336PSM 336
Controls:PC 1PC 1
Horizontal Axis Movement:63 Inches1600 mm
Vertical Axis Movement:63 Inches1600 mm
Axis Drive Type:AC-ServoAC-Servo
Velocity:.039 - 78 feet/second0.01 - 2.0 meter/second
Maximum Spray Tool Weight176 pounds79.83 kg

Video

Description

Used, Wollin Model PSM-336 1600 mm Two Axis Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations For_Sale, Features Include: Wollin PC 1 Controls, Absolute Positioning, Easily Programed via Teach Pendant Programing, Quick Set up times due to design, PC-1 controls, second Hand, DCM-2507

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
