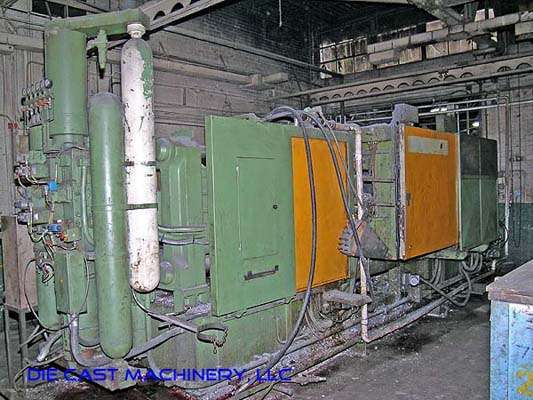

Used Italpresse Model: IP-750 SC 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 12| Status | Sold |
|---|---|
| Manufacturer | Italpresse |
| Model | IP-750 SC |
| Size | 750 Metric Ton |
| Inventory Number | DCM-1888 |
Italpresse - IP-750 SC 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Italpresse SC Controls
View Available Cold Chamber Squeeze Cast
Questions? Call (847) 360-9170 and mention DCM-1888.
Features & Accessories
- Factory Italpresse SC Controls using Allen Bradley SLC 5/03
- Top Operator Side Automatic Tie Bar Puller
- Automatic Power Die Clamping
Item Specifications for DCM-1888
| US | Metric | |
| Locking Force | 825 | 750 |
| Tie Bar Diameter | 6.49 inches | 165 mm |
| Clearance Between Tie Bars | 30.51 x 30.51 inches | 775 x 775 mm |
| Die Thickness (minimum - maximum) | 15.15 - 37.00 inches | 385 - 940 mm |
| Die Stroke (maximum) | 27.55 inches | 700 mm |
| Moving Platen Size | 49.40 x 49.40 inches | 1255 x 1255 mm |
| Shot Positions | Inserted, multi-positions | Inserted, multi-positions |
| Shot Stroke | 22.8 inches | 580 mm |
| Power | 480/3/60 - 50 HP | 480/3/60 - 37 kw |
| Machine Size | 28.2 x 8.5 feet | 8.604 x 2.50 m |
| Machine Weight | 72,600 pounds | 33,000 kg |
Description
Used, Italpresse Model IP-750 SC 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Factory Italpresse SC Controls using Allen Bradley SLC 5/03, Top Operator Side Automatic Tie Bar Puller, Automatic Power Die Clamping, Italpresse SC controls, second Hand, DCM-1888
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
